Heavy Duty Steel Lifting D Type Chain Block / Chain Hoist
| US$30.00-200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
D Type
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
3m
Chain Falls
4
Certification
CE, ISO9001:2000
Condition
New
Color
Yellow
Payment
T/T L/C
Delivery Time
20-40 Days
Transport Package
Carton or as Requested
Specification
Steel
Trademark
DESO
Origin
China Mainland
HS Code
84251900
Production Capacity
1000PCS Per Month
Product Description

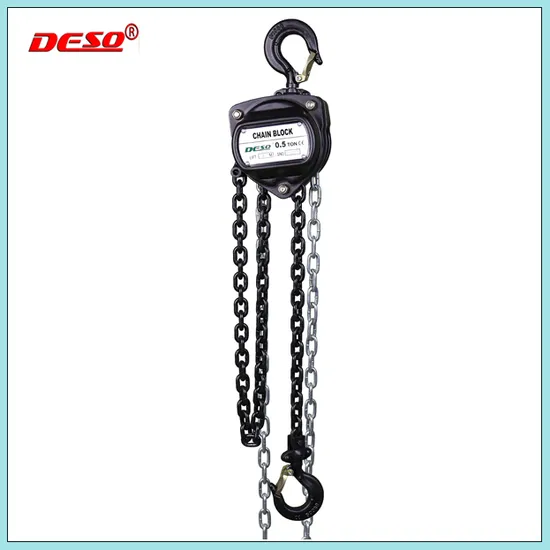

Chain Block / Chain Hoist (D type)* Compact design, low headroom
* High precision gears
* High endurance roller on load sprocket
* Double pawl brake system
* Engineering-optimized hand chain wheel, preventing hand chain stuck in Fast Operation
* High precision load chain guide
* Quenched and tempered high tensile G80 load chain and hooks
* Smooth surface with powder coated preventing rust
* Individual serial No. for each set, wheel cover with DESO logo and WLL embossed.
| Product | Chain block (D type) | |
| Material | Gear | International standard alloy steel |
| Hook | High-class alloy steel | |
| Chain | Alloy Steel,meet EN818-7standard | |
| Capacity | 0.5t~50t | |
| Feature | * High efficiency, small pulling effort and easy maintenance * Overload limiter protects hoist mechanism is available * Wet friction discs with longer life * Wider opening hook of easier handling shape * Forged upper and bottom hooks with forged steel safety latches * Double pawls supporting fail-safe brake mechanism for secure operations | |
| Delivery Time | 20~40 days, based on Qty | |
| Packing | Carton / Wooden case / Wooden case + Pallets as required | |
| Application | Widely used in the dock, logistics operations, factory warehouses, construction and modern production lines | |
| Capacity (T) | Lift (M) | Test Load (kN) | Pull to lift rated load (N) | Strands of load chain | Load chain dia. (mm) | Dimesion | Net weight (kg) | Extra weight of one M lift (kg) | Packing size (cm) | ||||
| A | B | C | D | K | |||||||||
| 0.25 | 2.5 | 3.1 | 190 | 1 | 4 | 104 | 100 | 230 | 30 | 23 | 4.2 | 1 | 17*15*14 |
| 0.5 | 2.5 | 6.3 | 262 | 1 | 6 | 1265 | 136 | 266 | 36 | 25.5 | 9.2 | 1.7 | 20*16*19 |
| 1 | 2.5 | 12.5 | 265 | 1 | 6 | 143 | 156 | 324 | 40 | 28 | 11.3 | 1.7 | 23*18*20 |
| 1.5 | 2.5 | 18.8 | 265 | 1 | 7.1 | 148 | 182 | 392 | 52 | 38 | 15.6 | 2 | 29*22*22 |
| 2 | 3 | 25 | 272 | 1 | 8 | 152 | 198 | 407 | 52 | 38 | 19 | 2.3 | 29*22*22 |
| 3 | 3 | 37.5 | 320 | 1 | 10 | 181 | 266 | 636 | 60 | 40 | 28 | 3.1 | 40*25*24 |
| 3 | 3 | 37.5 | 280 | 2 | 7.1 | 156 | 214 | 465 | 60 | 42 | 23.4 | 3.1 | 33*25*21 |
| 5 | 3 | 62.5 | 358 | 2 | 10 | 181 | 266 | 636 | 68 | 50 | 43.2 | 5.3 | 42*28*24 |
| 10 | 3 | 125 | 370 | 4 | 10 | 181 | 365 | 798 | 85 | 57 | 76.8 | 9.8 | 54*49*30 |
| 20 | 3 | 250 | 370*2 | 8 | 10 | 192 | 630 | 890 | 106 | 84 | 160 | 19.6 | 88*78*34 |
| 30 | 3 | 375 | 370*2 | 12 | 10 | 330 | 670 | 1000 | 106 | 84 | 230 | 28.3 | 88*78*40 |
| 50 | 3 | 625 | 370*2 | 22 | 10 | 410 | 900 | 1950 | 170 | 130 | 850 | 50 | 160*130*90 |
Fair
Rated Products
If you need more details and have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
