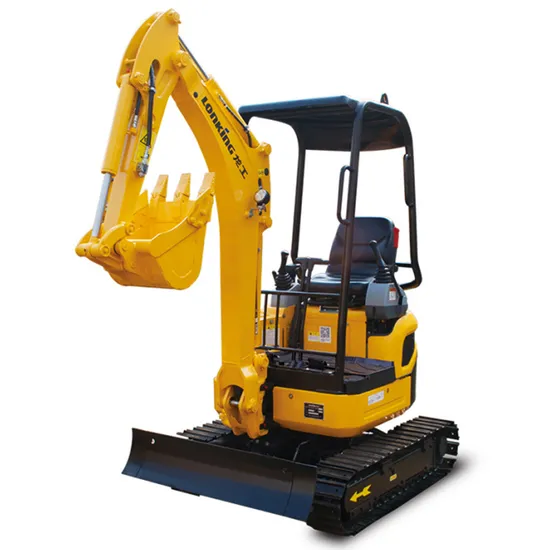

High Operating Efficency Factory LG6016 Mini Excavator 1.6 Ton
| US$8,140.00-14,652.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LG6016
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE
Condition
New
Self Weight
1600kg
Shipping Length
3771mm
Shipping Height
2322mm
Tumbers Distance
1233mm
Radius Swing Center to Rear End
620mm
Counterweight Ground Clearance
433mm
Track Gauge
1010/760mm
Overall Width
1240/990mm
Width of Upper Structure
985mm
Track Shoe Width(Standard)
230mm
Min. Ground Clearance
169mm
Origin
China
HS Code
8429521200
Product Description
Product Description| Whole machine | Approximate Weight (kg) | 1600 |
| Bucket Volume (m³) | 0.04 | |
| Pressure to the Ground (kPa) | 0.25 | |
| Travel Speed (Low/High)(km/h) | 2.0/3.6 | |
| Rotation Speed (rpm) | 8.5 | |
| Gradeability(°) | 30 | |
| Engine | Model | D782-E3B |
| Power (kW/rpm) | 9.8/2300 | |
| Displacement (L) | 0.778 | |
| Fuel Tank Capacity (L) | 13 | |
| Hydraulic system | Work Pressure (MPa) | 21.6/18.6 |
| Flow (L/min) | 7.2*2+4.5 | |
| Hydraulic Tank Capacity (L) | 18 | |
| Digging force | Max. Bucket Digging Force(kN) | 15.2 |
| Max. Arm Digging Force (kN) | 8.8 | |
| Bulldozer | Size(width*height)(mm) | 990/260 |
| Work Range(Ground/Underground)(mm) | 168/249 |
| Product structure |
| Hydraulic system | All imported configuration,multi-pump hydraulic system.Set merge channel and boom priority increase work speed. |
| Tailless design | The whole machine adopts tailless design.All-round adaptation to narrow space working enviroment. |
| Attachment pipeline | Standard breaker pipeline and reserved main valve backup connection. Ensure the normal switching of the multi-function attachments of the whole machine. |
| Runing Gear | Crawler retractable function.Access to narrow spaces such as elevators. The track can be extended when working to improve stability. |
| CAB | Detachable cab,Ensures proper operation in height-restricted locations.Improve working condition adaptability. |
| Power system | Standard Kubota D782-E3B engine National Ill emission standard.Lower fuel consumption and less noise |
| Product advantage |
| All-round work structure | Realize diversified operation of excavators, cope with various working environments, quickly and effectively, and save time |
| Intelligent man-machine dialogue | Selfdeveloped MCSS electronic control system, people work closely with the machine to maintain the best state and efficiency of the machine |
| Engine Management Specialist | Achieve precise power matching, more powerful, more energy -saving, and improve work efficiency |
| 360· safe cabin | The left and right column reinforced cab greatly improves the strength and rigidity of the cab, forming a solid 360' safety protection |
| Remote command center | The operating status of the machine can be remotely mastered through the Internet or mobile phone, and management and support can be carried out without on-site, which saves time and space. |
Detailed Photos
