2-Wire Non-Polarity Intelligent Addressable Smoke Detector for Alarm Control

Product Description

Introduction

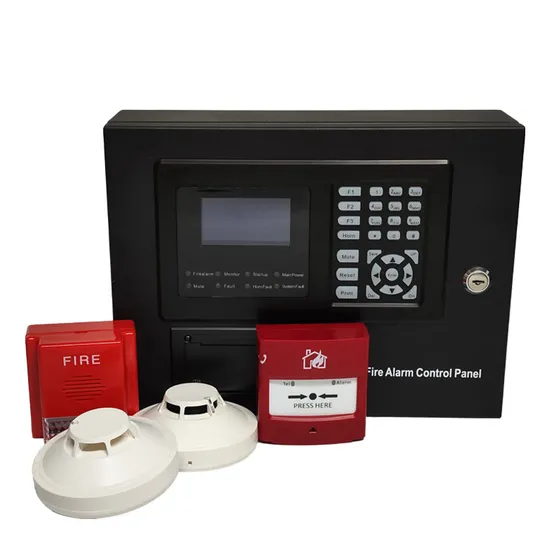

The CA100 is an addressable fire alarm control panel with 1 loop of 254 capacity control points. It's suitable for small size fire alarm system such as warehouse, factory, housing, KTV or hotel etc.
Parameters

Product name	Addressable fire alarm control panel	Capacity	254 control points
LCD display	192*64	Main power supply	AC220V± 15%, 50HZ.
Battery power supply	DC 24V (2 sealed batteries: 2*12V*2.3Ah)	Loop Bus wired	Non-polarity 2 wired.
Contacts capacity	1A/24VDC	Operating Environment	Temperature -10°C~+50°C Humidity ≤95%.
Dimensions	320mm×240mm×80mm.	Certification	CCCF

Main Functions
1. System self-test function. The system will test indicator light, LCD screen, sounder etc.
2. Inquiry function. Check model type zone number, device definition etc.
3. Event record. Record the fire alarm information and other operation record.
4. Data sampling. Data analysis.
5. Setting function. Set the password, time, printer information.
6. Install and programming. Address coding, Login, Logical programming
7. Feedback function. Give real-time feedback information after starting the equipment.
8. Faulty alarm function. Automatically check the working status of main power supply, battery power supply, detectors , modules and report the detail fault information.
Product range
Addressable fire alarm system
Standalone smoke detectors and combustible gas detector
4-wire smoke detectors with relay output.
Explosion-proof Product
Wireless alarm system
Electrical fire monitor system
Extinguishing control system
Fire door monitor system
Fire Extinguishing Water Cannon System
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
