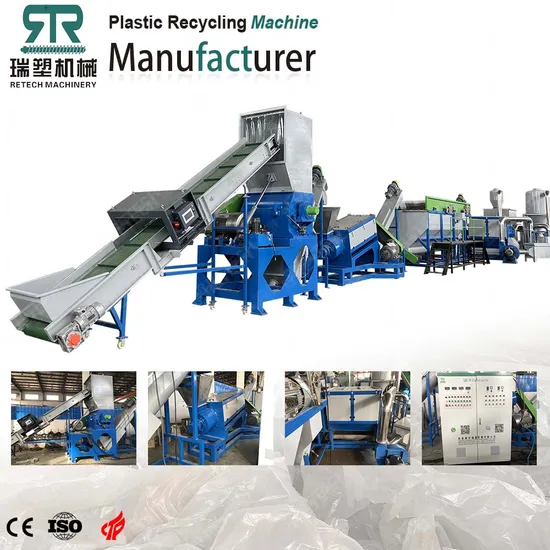

China Manufacturer Waste Plastic PP PE Film and Bag Washing Drying Machine

Product Description

China Manufacturer Waste Plastic PP PE Film And Bag Washing Drying Machine
Plastic Film Washing Line 1000kg/h
Our Plastic Film Washing Line is used to recycle waste plastic such as plastic bags, PP woven bags, plastic agriculture film,greenhouse films, mulching films,plastic pachage films,PE waste film,PP waste film,PVC waste film, industrial film, printed film and etc.
Product Overview
China Manufacturer Waste Plastic PP PE Film and Bag Washing Drying Machine has smart modular design which can recycle agricultural film, industrial packaging film, bag, and electronic waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying system, which can remove most of contaminants such as ferrous and nonferrous metals, sand, oil, glue, paper label and many other different contaminants efficiently, Moreover, we also can provide with waste water treatment system.The input capacity of our standard PE film washing line ranges from 500kg/h to1500kg/h.Our fully automated PE film washing line is the ideal solution to your PP/PE film recycling needs. Using a series of high-tech recyclig machinery,our washing line takes dirty and soiled polypropylene(PP) or Polyethylene(PE) plastic film and turns them into usable,clean,contaminant-free film pesces suitable for pelletizing into PP/PE pellets, or sometimes referred to as granules.Aside from producing the highest quality pellets that sell for top dollars, our plastic film washing line and pelletizing equipment offers state-of-the-art designs plus unmatched durability. Accompanied with world-class customer service, you'll be so glad you've purchased our PE film washing line.
The LDPE PP PE HDPE Film Washing Recycling Machine Processing:
1.Belt Conveyor 2.Wet Crusher 3.Screw Conveyor 4.Floating Washing Tank 5.Screw Conveyor 6.High Speed Friction Washer 7.Screw Conveyor 8.Dewatering Machine 9. 1st Drying System 10.Transition Silo 11. 2nd Drying System 12.Storager Silo 13.Electric Cabinet
Our Machine

Detailed Photos
1.Plastic Crusher Machine
(1)20-40% additional output, 15% additional power saving.
(2)Blades are externally adjustable, material DC53 with cryogenic treatment, a longer service life.
(3)Special blade arrangement for PE PP film/bag.
(4)Anti-wear machine housing, replaceable wear plates. Installed between wall and spindle, prevents the friction of the spindle after a ling period of operation, which leads to the increase of sealing clearance and leakage.
(5)Heavy-duty bearings, oversized external bearing housings.
(6)More convenient housing opening way. Electrical screw control screw control or Hydraulic control.
(7)User-friendly design to change screen.

2.Floating Washing Tank
(1)Washing tank rollers are designed for high pressure underwater washing, maximum removal of residual impurities can separate materials with different specific gravity, heavy materials with a specific gravity greater than water sink to the bottom of the tank, then discharged through the bottom screw raw materials with a lower specific gravity than water float on the surface and proceed to the next step.
(2)Claw type design discharge roller
(3)Ensure uniform discharge
(4)Effectively control the water content

3.Friction Washer
(1)The friction washer applies the corresponding blade hitting force to different materials at the most suitable rotation speed to achieve the best washing effect
(2)The part with water is used for 304 stainless steel
(3)During the high-speed rotation,separate impurities from raw material
(4)Impurities are discharged through the small mesh in the screen.
4.Dewatering Machine
(1)The integrated designof the dewatering machine and the fan, no need for a separate fan, which saves energy and enables smooth feeding and discahrging, no blocking.
(2)Adopt high-speed heavy-duty bearing, stainless steel spindles, and blades, dynamically balanced.
(3)Automatic screen cleaning device which is driven by air pressure, labor-saving.
(4)Adopt a container for collecting waster water &residue at the bottom.

5.Storage Buffer
(1) Easy to collect the final output material, can be customized to your use requirements, with hooks to hang the jumbo bag or other collection containers.
(2)Hydraulic cylinder design make full use of jumbo bag loading space
(3)Each hook can bearing 500kg
(4)Stainless steel inner to protect the final products quality

6.Electrical Cabinet
(1)International brand Low voltage components
(2)Double circuit safety relay
(3)Intelligent and modular PLC controlling system

Product Parameters

Type		RT300	RT500	RT1000
Capacity(kg/h)		300	500	1000
Energy consumption(KWH)		95	156	229
Installation power(KWH)		146	241	352
Dimension: L*W*H(m)		Depends on factory layout	Depends on factory layout	Depends on factory layout
Belt conveyor	Belt width(mm)	600	800	1200
	Motor power(KW)	1.5	2.2	3
Metal detector-Optional	Pass width(mm)	800	1000	1200
	Pass height(mm)	400	400	400
Crusher	Grind chamber(mm)	500*700	700*1000	/
	Motor power(KW)	55	75	/
Shredder	Grind chamber(mm)	/	/	/
	Motor power(KW)	/	/	75
Screw conveyor	Screw diameter(mm)	300	400	500
	Motor power(KW)	3	4	5.5
Washing tank	Dimension of tank(mm)	4000×1400	5000×1600	7000×1800
	No. of thumb-wheel(pcs)	4	6	7
	Discharge plate valve(pcs)	2ports*2=4	3ports*2=6	4ports*2=8
Friction washer	Screw diameter(mm)	300	400	500
	Motor power(KW)	11	18.5	30
Squeezing dryer	Screw diameter(mm)	/	320	410
	Motor power(KW)	/	55	75
Storage buffer	Storage capacity(CBM)	3	4	6
	Motor power(KW)	2.2	3	4
Waste water filtration device-Optional	Vibration screen size	800	1000	1200
	Screen mesh	40	40	40
Electrical cabinet	PLC controller	/	/	/
	Button type	/	/	/
Man power(person/shift)		3	3-4	3-4
Delivery time(day)		60-90	60-90	60-90
Warranty(month)		12months	12months	12months
Technical assistance		Egnineer available to service machinery overseas	gnineer available to service machinery overseas	gnineer available to service machinery overseas

Company Profile
Related products
Loading container

Sales Service
SEE RETECH MACHINE HOW TO ENSURE THE QUALITY! 1.In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2.Each component before assembly needs strictly control by inspecting personnel.
3.Each assembly is in charged by a master who has working experience for more than 20 years
4.After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF RETECH MACHINE! 1.After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
2.After the commissioning, we will package the equipment by standard export package for shipment.
3.According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4.Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
