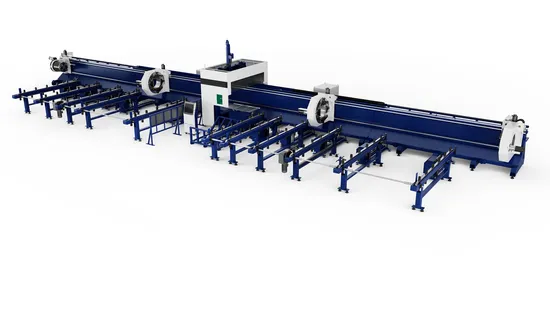

CNC Laser Fiber Pipe Cutting Machine 3kw 6m

Product Description

Video link in Youtube :
https://youtu.be/G-B9pZZBVfc
https://youtu.be/LPe_kbF0okU
https://youtu.be/PcSidO0y8Eo
Main Features
1)Can cut lines and holes with different diameters from different directions on the pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
2) Can cut column Crossed Lines at the end of branch pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
3) Can cut inclined section at the end section of the pipe.
4) Can cut branch pipe intersected with the main circular pipe.
5) Can cut variable angle bevel surface
6) Can cut square hole, waist-shaped holes and circular hole on the pipe.
7) Can truncate the pipe.
8) Can cut all kinds of graphics on the surface of the square pipe.
Applications
Material:
Especially for cutting of stainless steel, carbon steel, alloy steel, aluminum, copper, titanium, or other metal material, Customised good effect for the treatment of the alloys.
Industry:
Petroleum exploration, lamps, metal, tool-processing and other

Machine parameter
Dimensions	Around 9000*2000mm
Length and diameter	Pipe length : 6000mm Pipe diameter: round pipe 20-220mm. Square pipe: 20*20mm - 160*160mm max. Rectangle pipe: 20-100mm .
Height	Adjustable	(Noise)			<65 Db)
Power supply (optional to site)	AC380V±5% 50HZ/60HZ	Power			16KW
Environment	Temperate :10-35ºC humidity: 40-85%
Laser parameters
Type	3000w MAX laser source
Working mode	Continous			Power			1000W
Spot quality(m2)	≤3			Laser wavelength			1070nm
theoretical life laser	100000 hours (Hours)
Equipment parameters
Pipe length and diameter	6000m×60*60mm		Machine weight				3500Kg
X range	200mm		Controller				Bochu ,Shanghai
Y range	9000mm		Max hold weight				250kg
Z range	180mm		Dimensions				10m X 2.5m X 2.3m
W1,W2 range	Infinite rotation		W1,W2 axis Repeatability				±15"
X,Y axis repeatability	±0.05mm/1000mm		X,Y maximum positioning speed				80m/min
X,Y repeatability	±0.07mm		W1 max positioning speed				85rpm
W1,W2 axis repeatability	±30"
auxiliary system
Cooling system	Laser machine for constant temperature control chiller (external)					Chillers water properties			PH=3
(Circuit protection)	CE standard
Software system
Software	Professional Software System
Support file format	Solidworks,Pro/e,UG and so on .
