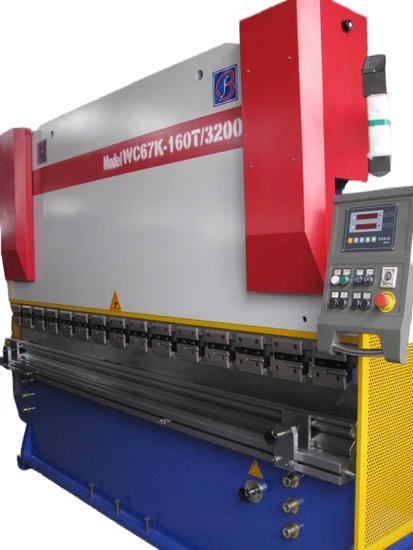

Versatile Nc Hydraulic Press Brake Machine for Precision Metal Bending

Product Description

1.Functions
This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.
2.Overall structure
2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
3.Parts of supply list
Tool clamping and Press Brake Die
Estun E10 System
Main electric elements(Siemens)

Serial No. No	Item	Parameter	Unit	Remark
1	Pressure	1600	KN
2	Plate Width	3200	mm
3	Stroke travel	180	mm
4	Depth of the throat	3 20	mm
5	The distance between columns	2 550	mm
6	Throat height	320	mm
7	Stroke Speed	12	hpm
8	Pump model	25MCY14-1B
9	Motor Power	11	Kw
