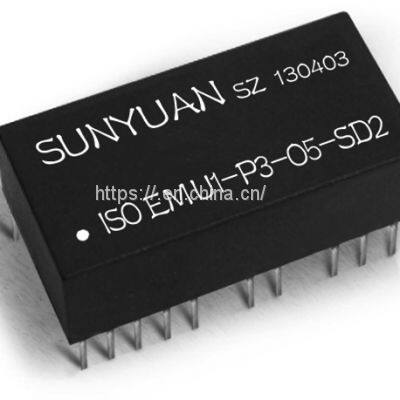

0-5V to 4-20mA Converter 4-20mA to 0-10V IC Isolation Amplifier IC ISOEM U(A)-P-O-S Series
ISOEM U(A)-P-O-SD Series Converter Features:
Zero, Gain, Full scale calibration are available through external multi-turn potentiometer.
Power distribution in input end for function expansion: 5V,12V,15VDC
Isolated amplification and conversion on analog signals: 0-75mV/0-10V/0-1mA/4-20mA
Precision grade:0.1, 0.2; nonlinearity grade (in full measuring range) <0.2%.
Isolation power among auxiliary power, analog input, output: 3KVDC
Auxiliary power: 5V,12V,15V,24VDC,etc single power.
Electro-magnetic anti-interference circuits /shielding measures are required in the field with special EMC.
Low cost, compact DIP 24Pin, UL94V-0 standard flame retardant package.
Industrial Temperature range: -20 ~ +70 ºC
Applications:
Isolated power distribution for passive sensors and signals acquisition and transmission.
Distribute power for pre-amplification, electric bridge and other circuits to collect signals.
Isolated data acquisition of analog signals from PLC, DCS.
Analog signal GND wire anti-interference and data isolated acquisition.
DC current/voltage signal isolation, conversion and amplification.
Long distance isolated transmission of industrial site signals.
Meters, instruments and sensors signal acquisition and transmission.
Power monitoring control, medical equipments isolated safety bar.
Introduction:
SunYuan DIP24 ISO EM-SD Series Analog Active Signal Isolation Transmitter is a kind of modules
with hybrid integrated circuit inside which generates the signals with according matchable precision and linearity after the isolation, amplification, distribution, conversion process to the analog signals between sensors and PLC, instruments. In the IC, there are one multi-isolation DC/DC transforming power and a set of electric-coupling analog signal isolated transmitter. ISOEM-SD Series Magneto-electric Transmitter is mainly applied in the field where there is no special requirements on EMC (electro-magnetic interference). And by employing internal isolation technique, proper I/O side cree-page distance, the isolated voltage of signal transmitter is up to 3000VDC.
SunYuan ISO EM-SD Series Isolation Transmitter usually applied in the fields or equipments where there requires the adjustment on Full Scale and Zero, the calibration on Zero and Gain and high precision and reference comparison. The isolated power supplied by isolation transmitter in analog input end can distribute power to displacement resistance, angular transducer, speed sensor and other two-wire or four-wire passive sensors, it also can be used as the reference power supply for bridge circuits, differential amplification circuits, pre-amplification of input end.
Examples:Model Sellection:
