Customizable Hydraulic Oil Cylinder Testing Jack for Pile Foundation Inspection Building
| US$100.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YXRG
Structure
Hydraulic Jack
Capacity (Load)
200t-1200t
Power Source
Electric
Max Height
201-250mm
Certification
ISO 9001:2008
Condition
New
Non-Standard
Customizable
Transport Package
Wooden Box Packaging
Trademark
YueZhenQin
Origin
China
HS Code
8425421000
Production Capacity
100000000
Product Description

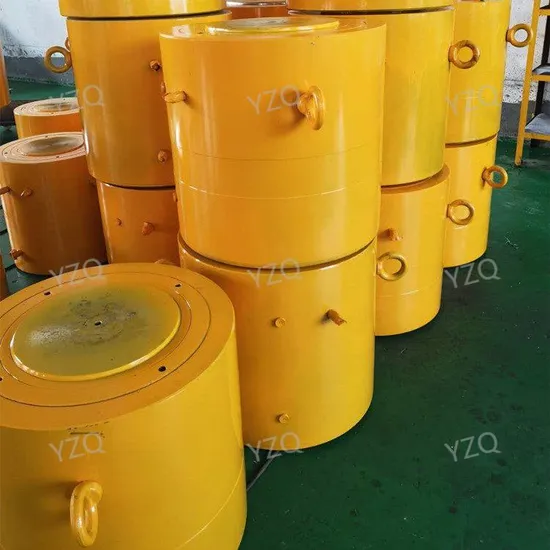

YXRG series pile foundation inspection hydraulic cylinder is double acting, large tonnage, oil pressure return, this advanced product is developed especially for the industries of foundation settlement test, static pile loading, pile foundation inspection, and so on. It adopts special seal structure, has high strength cylinder block, so it has the characters of good pressure maintaining, high safety factor, long lift etc.Can be customized by your requirement.
| Model | Tonnage (T) | Bore Diam (mm) E | Out Diam (mm) D | Rad Diam (mm) F | Stroke (mm) L | Coll Height (mm) A | Extende Height (mm) | Rated Pressure (Mpa) | Weight (kg) |
| YXRG200-200 | 200 | 200 | 273 | 150 | 200 | 400 | 600 | 63 | 130 |
| YXRG200-250 | 250 | 450 | 700 | 145 | |||||
| YXRG320-200 | 320 | 250 | 325 | 180 | 200 | 435 | 635 | 63 | 215 |
| YXRG320-250 | 250 | 485 | 735 | 240 | |||||
| YXRG400-200 | 400 | 280 | 377 | 200 | 200 | 465 | 665 | 63 | 300 |
| YXRG400-250 | 250 | 515 | 765 | 330 | |||||
| YXRG500-200 | 500 | 320 | 426 | 250 | 200 | 488 | 688 | 63 | 436 |
| YXRG500-250 | 250 | 538 | 788 | 482 | |||||
| YXRG630-200 | 630 | 360 | 490 | 280 | 200 | 536 | 736 | 63 | 693 |
| YXRG630-250 | 250 | 586 | 836 | 751 | |||||
| YXRG800-200 | 800 | 400 | 550 | 320 | 200 | 585 | 785 | 63 | 974 |
| YXRG800-250 | 250 | 635 | 885 | 1035 | |||||
| YXRG1000-200 | 1000 | 450 | 610 | 360 | 200 | 620 | 820 | 63 | 1337 |
| YXRG1000-250 | 250 | 670 | 920 | 1430 | |||||
| YXRG1200-200 | 1200 | 500 | 670 | 380 | 200 | 640 | 840 | 63 | 1647 |
| YXRG1200-250 | 250 | 690 | 940 | 1752 |
