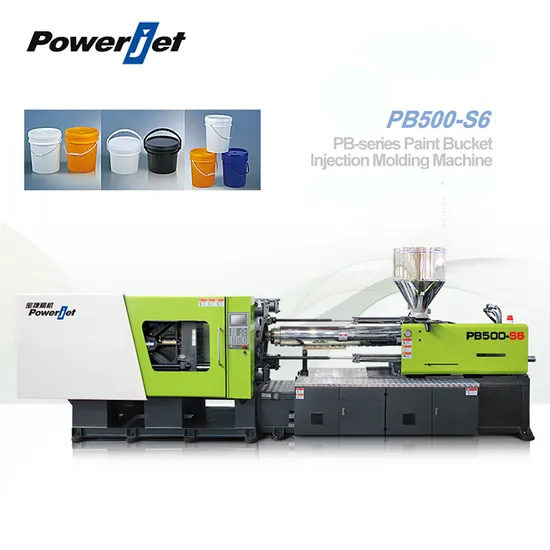

Advanced Horizontal Plastic Injection Molding Machine for Paint Containers

Product Description

PB Series plastic bucket injection molding machine are specialized for PP plastic bucket. Higher productivity and more stable production with improved machine which specialized for making bucket.
FEATURES:
1:Special PE Material Tube - fast melting speed and good color mixing effect.
2:Increased Hydraulic Circuit - increase injection and melting speed.
3:Improved Frame Structure - more making barrel requirements.
4:Customized Product Slides - products fall out automatically, increasing productivity.
Specification
The unique operating principle of servo drive+energy-saving heating device, low energy consumption, longer life, cost saving.
One-line double-cylinder balanced injection device significantly improves the stability of injection high repeatability, avoid welding lines, uneven density.

	DESCRIPTION	UNIT	PB500-S7
CLAMPING UNIT	Clamping force	KN	5000
	Opening stroke	mm	830
	Max.datlight	mm	1680
	Platen size	mm	1230*1190
	Max.mold height	mm	850
	Min.mold height	mm	300
	Ejector stroke	mm	220
	Ejector force	KN	135
INJECTION UNIT	Screw diameter	mm	83
	Screw L/D Ratio	L/D	23
	Injection Pressure	MPa	172
	Shot volume	cm3	2543
	Screw stroke	mm	470
	Screw speed	rpm	250
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	51+41
	Heater power	KW	33
