China Professional Manufacturer 22% High Efficiency Mono Silicon PV Modules 2V 3V 4V 5V 6V Custom Made Shapes Pet ETFE Lamination Small Thin Film Solar Panels

Product Description

We manufacture and design mini solar panels for:
Usage/Function: our clients use our custom shape and dimension mini solar panels for solar lighting-solar lamps, solar garden lights, solar lantern, solar charger, LED Lights, Toys, Mobile Chargers, marine equipment, drones,camera, IOT devices, GPS and thousands of solar applications to get power from sunshine energy.
Custom Shapes & custom dimensions supports: square, rectangle, triangle, tetragonum(parallelogram, rhombus, trapezoid), round, fan-shaped, arch, circle and polygon by solar cells of normal mono efficiency or mono high efficiency of 19%-23% High Efficiency cell, etc.

To proceed your custom demand mini solar panels, we need to know following

Power watts of the panel:

Voltage and current:

What is the dimension and shape size:

Where will you put the panels on (we do need to know the product to work with and how it will be assembled):

Special requirements:

Options for the surface film: not just the ETFE film, but also PET and glass.
Technical of some of our custom shapes of high efficiency mini solar panels for reference:
Hexagon Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 0.11W
Tolerance: ±5%
Open Circuit Voltage Voc:5.4V
Short Circuit Current Isc:26.2V
Working Voltage Vm:4.5V
Working Current Im:24.5mA
Product Dimension: Diagonal 40mmx1.8mm±0.2mm
Water Protection: IPX6
Weight: 3g
Abnormal Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 1.1W
Tolerance: ±5%
Open Circuit Voltage Voc:14.4V
Short Circuit Current Isc:100mA
Working Voltage Vm:12V
Working Current Im:92mA
Product Dimension: 130mm*80mm*2mm±0.2mm
Water Protection: IPX6
Weight: 25.7g
Fan Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 8.2W
Tolerance: ±5%
Open Circuit Voltage Voc:24V
Short Circuit Current Isc:440mA
Working Voltage Vm:20V
Working Current Im:410mA
Product Dimension: 473mm*150mm*2mm±0.2mm
Water Protection: IPX6
Weight: 140g
Glass Plane Shape Solar Panel
Product Specification
Rated Power: 2.8W
Tolerance: ±5%
Open Circuit Voltage Voc:20.4V
Short Circuit Current Isc:178mA
Working Voltage Vm:17V
Working Current Im:165mA
Product Dimension: 380mm*70mm*5mm±0.5mm
Water Protection: IPX6
Weight: 182g
Round Shape Frosting PET Solar Panel
Product Specification
Rated Power: 1W
Tolerance: ±5%
Open Circuit Voltage Voc:14.4V
Short Circuit Current Isc:90mA
Working Voltage Vm:12V
Working Current Im:84mA
Product Dimension: Diameter 100mm*2mm±0.2mm
Water Protection: IPX6
Weight: 24.2g
Square Shape Frosting PET Solar Panel
Product Specification
Rated Power: 1.1W
Tolerance: ±5%
Open Circuit Voltage Voc:6V
Short Circuit Current Isc:235mA
Working Voltage Vm:5V
Working Current Im:220mA
Product Dimension: 80mm*80mm*2mm±0.2mm
Water Protection: IPX6
Weight: 20.2g
Abnormal Shape Frosting Solar Panel
Product Specification
Rated Power: 0.9W
Tolerance: ±5%
Open Circuit Voltage Voc:6V
Short Circuit Current Isc:193mA
Working Voltage Vm:5V
Working Current Im:180mA
Product Dimension: 183mm*65mm*2mm±0.2mm
Water Protection: IPX6
Weight: 28.4g
Round Shape Transparent PET Solar Panel
Product Specification
Rated Power: 0.11W
Tolerance: ±5%
Open Circuit Voltage Voc:5.4V
Short Circuit Current Isc:24mA
Working Voltage Vm:4.95V
Working Current Im:22mA
Product Dimension: Diameter 39.5*1.8mm±0.2mm
Water Protection: IPX6
Weight: 2g

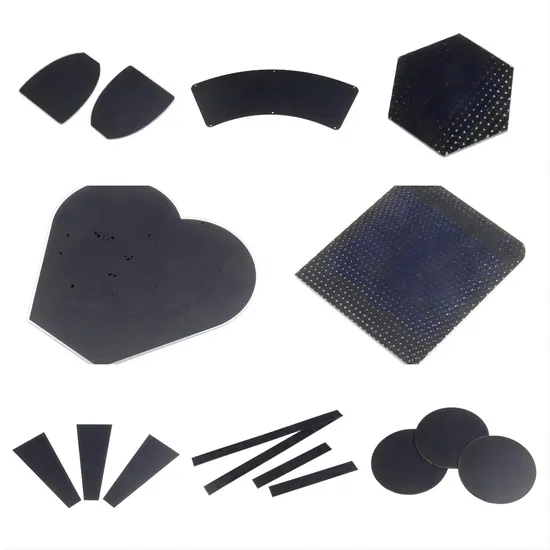

Some of our custom shapes normal mono silicon cells mini solar panel:
Please feel free to contact us for more information.
FAQ:Q1: May I buy samples from you?
A1: Yes! You are welcome to place sample order to test our superior quality and services.
Q2: Do you support OEM?
A2: Yes, we can make products as your request.
Q3: How will you deliver my goods to me?
A3: The mode of transportation we usually adopt is sea transportation.Air Cargo and Direct line, Air Mail also be accepted according to clients' request.
Q4: What about the lead time for mass production?
A4: As usually , 10-15 days is our lead time, except the busy seasons.
Q5: What is your Warranty?
A5: All the products will have 12 months Warranty.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. We accepts to make the logo for bulk orders.
Q7: May | know the status of my order?
A7: Yes. The order information and photos at diferent production stage of your order will be sent to you and the information will be updated in time.
