High Precision 3/4 Axis CNC Drilling and Milling Machine

Product Description

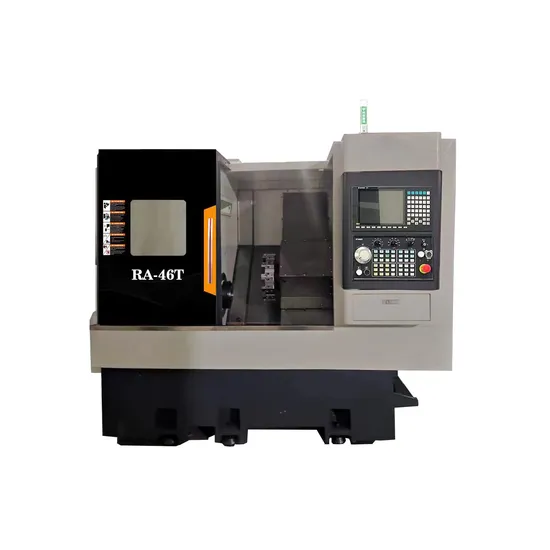

Slant Bed High Precision Hot Sale 3/4 Axis CNC Drilling Milling Turning Turret Machine Center
Product Description

Processing Capability			Unit	RA-46T
Processing Capability	Maximum bed swivel diameter		mm	Φ420
	Maximum machining diameter		mm	Φ300
	Maximum machining diameter on the tool holder		mm	Φ126
	Maximum processing length		mm	300
	Maximum bar through-hole diameter		mm	Φ46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	450
		Z-Axis	mm	350
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 30 (ball)
Turret	Number of tool positions		pcs	80-12T
	OD tool holder specifications		mm	20x20
	I.D. Tool Holder Specifications		mm	Φ20

Our state-of-the-art CNC turret lathe is a game-changer in the manufacturing industry. Ideal for processing automotive components, mechanical parts, molds, shafts, wheels, and a myriad of metal parts, this machine shines in high-volume production, delivering unmatched precision. It handles complex shapes and a variety of materials with ease, significantly boosting your enterprise's competitiveness and productivity.
• High-precision machining: Engineered to the highest precision standards, our CNC lathe guarantees exceptional accuracy, ideal for ultra-fine cutting tasks. It offers impeccable internal and external precision, ensuring the highest levels of roundness and coaxiality.
• Multiple processes: This incredibly versatile machine seamlessly executes a wide array of complex processing tasks. From radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing, it consolidates numerous processes into one powerful system, delivering comprehensive capabilities.
• Clamping and positioning the workpiece:
The gripper's primary function is to securely hold the workpiece in place, ensuring it remains fixed throughout the machining process for optimal results.
By guaranteeing meticulous positioning, the gripper maintains the workpiece's precise alignment with the cutting tool, ensuring superior machining accuracy and consistency.
• Solve special clamping problems:
Specialized fixtures are designed to provide tailored solutions for machining holes, shafts, slots, and threads in parts that are not bushings or wheels, addressing unique clamping challenges effectively.
These meticulously designed fixtures cater to specific machining needs, overcoming challenges that traditional fixtures cannot handle, ensuring efficient and precise operations.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Delight in unmatched processing conditions within a state-of-the-art production environment, designed to bring the best out of every operation.
Our cutting-edge imported equipment portfolio, featuring horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, ensures unparalleled workpiece precision. This commitment to excellence enhances assembly accuracy and significantly extends performance longevity.
• State-of-the-Art Detection Methods
Our positioning accuracy is meticulously tested and finely calibrated using sophisticated laser technology, adhering strictly to the rigorous German VDI3411 inspection standards (conducting 5 tests per standard).
Each machine tool undergoes exhaustive processing tests before leaving our factory, ensuring they surpass actual processing accuracy standards with ease.
Product sample
• Experience unparalleled efficiency with our Vertical CNC Drilling Machine Center, where advanced milling, drilling, and tapping functionalities converge seamlessly. This state-of-the-art machine is engineered to deliver superior performance and precision, making it an indispensable asset for any modern manufacturing setup.
• Master the art of precision with our CNC machine, expertly designed to handle a diverse range of materials including aluminum, steel, copper, and even non-metal profiles. Our cutting-edge technology ensures exceptional accuracy and consistency, empowering you to achieve flawless results in every project.
• Elevate your production capabilities across multiple industries, from 3C electronics and rail transportation to aerospace and linear module guide rails, with our versatile CNC machining solutions. Our innovative machines are tailored to meet the unique demands of each industry, providing unparalleled adaptability and efficiency to boost your productivity.
Packaging & Shipping
•Highly Protective: Our state-of-the-art packaging solutions guarantee that the Vertical CNC Drilling Machine Center remains impeccably safe and secure throughout transit. By providing robust protection, we eliminate the risk of damage, ensuring your machine arrives in pristine condition.
•Structural Stability: Designed with precision, our packaging maintains the machine's structural integrity, ensuring that all components are securely housed and arrive in perfect working order, ready for immediate use.
•Environmentally Friendly and Recyclable: At Dongguan Luotuo Industrial Co., Ltd, we prioritize sustainability. Our packaging materials are not only exceptionally durable but also eco-friendly and fully recyclable, significantly reducing environmental impact.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a 40% initial deposit required upon ordering and the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our trade terms include FOB, CFR, and CIF, offering you the flexibility to choose what suits you best.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we can have your order ready within 30 days. Custom or special machines might require additional time. Please place your order according to our provided delivery schedule.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we proudly offer a comprehensive one-year warranty.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it reaches you in perfect condition.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model for your needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for you.
