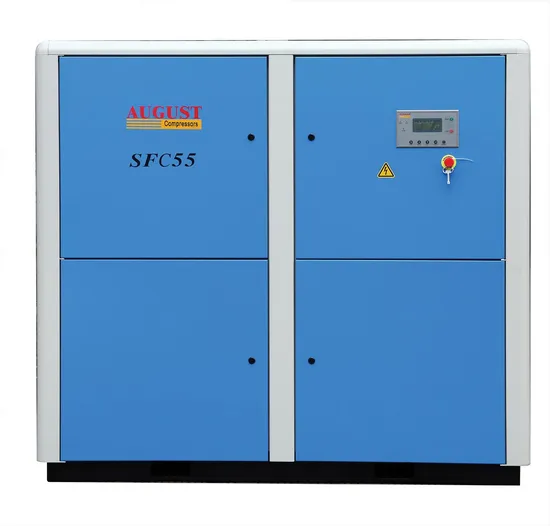

Industrial 55kw/75HP August Stationary Air Cooled Screw Compressor
| US$5,700.00-6,300.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SFC55
Power Source
AC Power
Cylinder Position
Horizontal
Structure Type
Closed Type
Installation Type
Stationary Type
Type
Twin-Screw Compressor
Configuration
Stationary
Noise Level dB(a)
75
Dimension
2000X1200X1798 mm
Weight
1990 Kg
Air Supply Outlet(Inch)
2"
Transport Package
Non-Wooden
Specification
ISO 9001/ISO14001/ CE
Trademark
AUGUST
Origin
China
HS Code
84148090
Production Capacity
4000/Year
Product Description
SFC55 August Stationary Air Cooled Screw CompressorAir Cooled Twin Screw Single Stage Air End - AUGUST- Brand 5 Year Rotor Warranty 45,000-50,000 Working Hours Engineered Lifetime SKF Explorer Bearings (mainly) Energy Saving micro control system, fully automated operation Easy Maintenance Low-noise operation, closed cabinet structure, Noise Reducing Dumping Mats made of fire-retardant materials Direct Coupling Drive SFG37-SFA45 Displayed drawing is for reference only and might be different in advanced model. Please ask for detailed drawing if and when required. Efficient, safe and reliable fully enclosed motor drive (IP54, F class / IP55 optional) Energy Saving Air end 5:6 Helix Networkable Link between Compressors / Grouping with on-line, remote monitoring and DSC network functions High precision heavy duty intake filter 1μm, 99.9% efficiency Optimized Oil Separation System residual oil rate 1-3mg/m3 Low Speed Air end Operation Automatic Control of Functions / Maintenance Indicator English language display, easy operation, running status at a glance, running real-time monitoring data Pressure and Temperature Control and Protection Start Up Protection ( Current Spike Free) English Language Display / English Language Manual Technology
| Model | SFC55A | SFC55B | SFC55C | SFC55D |
| Free air delivery(m3/min) | 10.50 | 8.50 | 7.60 | 10.00 |
| cfm | 371 | 300 | 268 | 353 |
| l/s | 175 | 142 | 127 | 167 |
| Discharge pressure(MPa) | 0.70 | 1.00 | 1.30 | 0.80 |
| bar | 7.00 | 10.00 | 13.00 | 8.00 |
| psig | 101.50 | 145.00 | 188.50 | 116.00 |
| Ambient temperature(ºC) | -5~+40 | |||
| Cooling method | Air cooling | |||
| Air supply temperature (ºC) | Less Than Ambient temperature +15ºC | |||
| Drive method | Direct Coupling Drive | |||
| Start method | Star delta start | |||
| Noise dB(A)±3 | 75 | |||
| Power (kW/HP) | 55/75 | |||
| Overall dimension (mm) | 2000×1200×1798 | |||
| Weight (kg) | 1890.00 | |||
| Air supply out (Inch) | 2" | |||
