Economical CNC Lathe Machine Tck36A CNC Slant Lathe Machine with Inclined Bed
| US$12,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TCK36A
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
360mm
Max.Swing Over Cross Slide
140mm
Max. Processing Length
300mm
Max. Bar Capacity
41mm
Max.Processing Diameter of Plate Type of
360mm
Transport Package
Plywood Case
Specification
2200*1600*1850
Trademark
shenghuan
Origin
China
HS Code
8458110090
Production Capacity
500
Packaging & Delivery
Package Size
280.00cm * 230.00cm * 250.00cm
Package Gross Weight
4000.000kg
Product Description
Product DescriptionEconomical CNC Lathe Machine Tck36A CNC Slant Lathe Machine with Inclined Bed

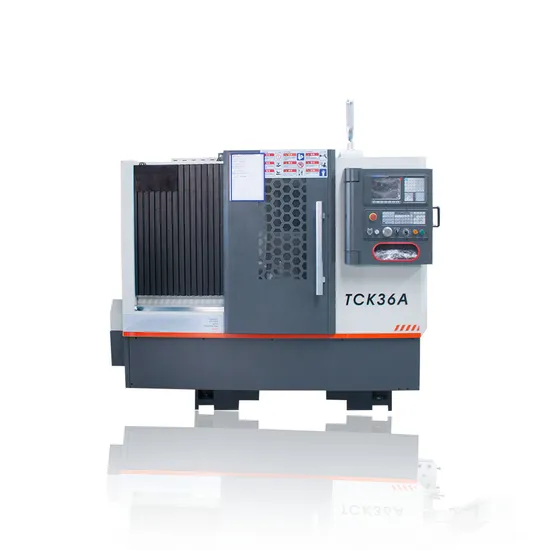

Realistic photos
Product features: Highest accuracy Taiwan linear guide ways Higher speed spindle unit ,optional homemade spindle Higher rigidity cast iron Integrated automatic lubrication One-piece casting slant bed cnc lathe Application : The machine is suitable for automobile, motorcycle, electronics, aerospace,oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient. Product Parameters
Main technical specifications:
| Specification | Unit | TCK36A |
| Max.swing over bed | mm | 360 |
| Max.swing over cross slide | mm | 140 |
| Max. Processing length | mm | 300 |
| Max. Bar capacity | mm | 41 |
| Max.processing diameter of plate type of workpiece | mm | 360 |
| Spindle nose type | A2-5 | |
| Spindle bore | mm | 48 |
| Spindle speed range | r/min | 50-4000 |
| Main motor power | kw | 5.5 |
| Chuck form | Hydraulic chuck | |
| Chuck size | inch | 6 |
| X axis rapid traverse | M/min | 24 |
| Z axis rapid traverse | M/min | 24 |
| X axis servo motor torque | N.m | 6 |
| Z axis servo motor torque | N.m | 6 |
| X axis travel | mm | 170 |
| Z axis travel | mm | 350 |
| Guide rail type | linear rail | |
| Tool post type | Horizontal 8 station | |
| Tool shank size | mm | 20x20/dia.25 |
| Tailstock type | hydraulic | |
| Tailstock quill dia. | mm | 65 |
| Tailstock quill travel | mm | 870 |
| Tailstock quill taper | MT4 | |
| Total rated power | kw | 9 |
| Total rated current | A | 19 |
| Machine weight | kg | 2400 |
| Machine dimension | mm | 2200x1600x1850 |
Detailed Photos
