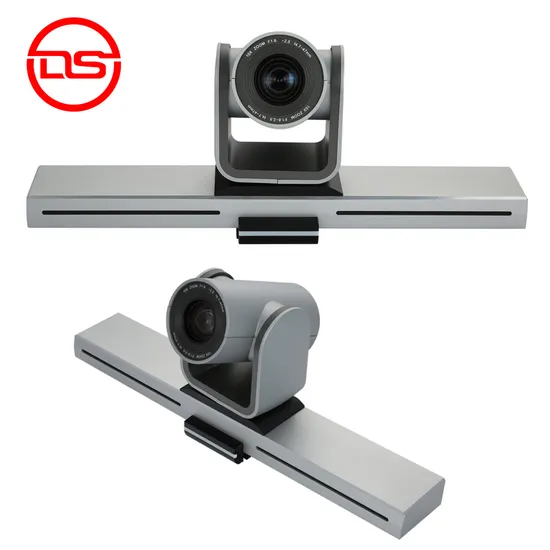

USB2.0 HD Video Conference PTZ Camera for Interactive Touch Panel
| US$299.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DSY-H3M
High Resolution
1080P
Model
DSY-H3M
Media Type
HDD / Flash Memory
Optical Zoom
10X - 20X
Technology
Pan / Tilt / Zoom
Video Output
USB 2.0
Lens
10X autofocus lens
Image Sensor
1/2.9" HD Sony sensor
HOV
54 degree
Focus
f=4.7-47mm (F1.7-F3.0)
Effective Pixels
2.1 Mage Pixel
Min. Illumination
0.1Lux at F1.6
Video Resolution
1080930/25
Application
Interactive Touch Panel for meeting
Type
Video Conferencing System
Video
Video
Composition
Loudspeaker
Communication
Wired
Pointing Feature
Hypercardioid
Transport Package
Carton
Specification
180mm× 112mm× 129mm
Trademark
OEM
Origin
Guangdong, China
Production Capacity
5000PCS/Month
Product Description
USB2.0 2.1MP HD Video Conference PTZ Camera for Interactive Touch PanelFeatures :
1. Low Cost High Performance 2.1 Megapixel HD Color Video camera achieved 1080p@30 or 720p@30 high quality images.
2. Equipped with 10x optical zoom,
3. USB 2.0 ideally for Small or Medium size Web conferencing system, easily connecting to laptop for whom on business trip.
4. Easy to apply to TV, interactive touch panel
5.Smooth PTZ movement:PAN 150 degree,T & Z movement up to 30degree
Specification
| Model No. | DSY-H3M | DSY-H3AM | |||
| Image Sensor | Sensor | 1/2.9" SONY SENSOR | |||
| Effective Pixel | 2.1 Megapixel | ||||
| Min. Illumination | 0.1Lux at F1.6 | ||||
| White balance | Auto/Manual/Indoor/Outdoor/ATW | ||||
| Gain control | Auto | ||||
| Back light compensation | Support | ||||
| Electronic Shutter | Support | ||||
| S/N ratio | >50db | ||||
| Lens | Focus | f=3.3mm-10mm | f=4.7mm-47mm | ||
| Iris | F1.7-F3.0 | F1.6-F2.5 | |||
| Zoom | 3 x Optical zoom | 10 x Optical zoom | |||
| HOV | 84° | 54° | |||
| Video output | USB2.0 | ||||
| Video output format | MJPEG:1080P30/25,720P30/25,640*480,640*360 | ||||
| Communication interface | USB | ||||
| Communication Protocol | VISCA,PELCO-D,UVC | ||||
| Baud Rate | 9600bps/38400bps | ||||
| Preset Position | 64 | ||||
| Speed Match | The speed of can be determined according to the magnification of the lens | ||||
| OSD Menu | Support | ||||
| Image Flip | Support | ||||
| Pan Movement Speed | 1-40°/S | ||||
| Tilt movement speed | 1-40°/S | ||||
| Horizontal rotation | 350° | ||||
| Vertical rotation | Up: 30°, Down: 30° | ||||
| Remote controller | IR Wireless Remote controller P/T/Z | ||||
| Power supply | USB2.0 (Power supply with USB) | ||||
| Work Temperature | 0-50ºC | ||||
| Humidity | 0-95% RH | ||||
| LxWxH | 180mm×112mm×129mm | ||||
| Weight | 800g | 800g | |||
Accessories kits in package:
1x HD Color Video Camera
1x Installation brackets & screws
1x 5 meters USB Cable
1xIR Remote Controll
Why choose us ?
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in development, production and marketing of the Interactive Touch Display .
We are one-stop solution company for industrial screen display, business and education .
Our factory locates in Shenzhen, owning core experienced technology team. We are certificated ISO9001 : 2008 quality management system and ISO14001 : 2004 environmental management system. We have strict quality control process to ensure every product can meet our customer's requirement.
Shipping and Payment
1.Payment term : T/T 30% down payment before production,the 70% balance should be paid before shipment after inspection.
2.Warranty: 2 Years warranty .Lifetime maintainance.
More applications for Video Conferencing ,please contact us!
