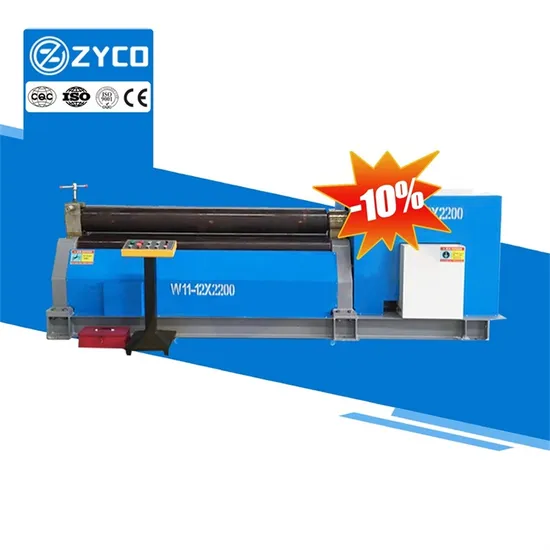

Spot Goods Customize W11 8mmx2meter Rolling Machine for Iron Platestainless Steellow Carbon Steel Plate ISO

Product Description

The W11 three-roller plate rolling machine uses hydraulic pressure, mechanical force and other external forces to move the working rolls, thereby bending or rolling the plate. According to the rotation and position changes of the working rolls of different shapes, oval parts, arc parts, cylindrical parts and other parts can be processed. It has a very wide range of applications in daily production.CONTROL SYSTEMView More Products,click here...Three rollers SystemReducer
Side support Motor box Main motor

Model	Pressure	Max.rolling		Max.rolling	Upper roller	Down roller	Rollers	Motor
		thickness
	(Ton)	(mm)		length	diameter	diameter	distance	kw
		Pre-bending	Max bending	mm	mm	mm	mm	Driving	Hydraulic
		mm	mm
6x1500	25	4.8	6	1500	175	125	160	3	2.2
6x2000	25	4.8	6	2000	195	125	160	3	2.2
6x2500	25	4.8	6	2500	205	135	180	3	2.2
6x3000	37	4.8	6	3000	215	135	180	4	2.2
8x1500	25	6.4	8	1500	175	125	160	3	2.2
8x2000	25	6.4	8	2000	195	125	160	3	2.2
8x2500	37	6.4	8	2500	205	135	180	4	2.2
8x3000	45	6.4	8	3000	215	135	180	4	2.2
10x1500	37	8	10	1500	205	135	180	4	2.2
10x2000	45	8	10	2000	215	135	180	4	2.2
10x2500	45	8	10	2500	235	135	180	4	2.2
10x3000	65	8	10	3000	245	135	180	5.5	4
10x4000	75	8	10	4000	255	150	245	7.5	4
12x2000	65	9.6	12	2000	250	145	200	5.5	4
12x2500	65	9.6	12	2500	255	150	245	5.5	4
12x3000	75	9.6	12	3000	270	150	245	7.5	4
12x6000	100	9.6	12	6000	290	150	245	15	5.5
16x2000	75	12.8	16	2000	255	150	245	7.5	4
16x2500	100	12.8	16	2500	270	150	245	15	5.5
16x3200	100	12.8	16	3200	290	150	245	15	5.5
16x6000	190	12.8	16	6000	300	165	270	22	7.5
20x2000	100	16	20	2000	325	165	270	15	5.5
20x2500	130	16	20	2500	330	180	300	15	5.5
20x3000	160	16	20	3000	350	180	300	18.5	7.5
20x4000	190	16	20	4000	360	200	330	22	7.5
20x6000	380	16	20	6000	375	200	330	45	22
25x2000	160	20	25	2000	330	180	300	18.5	7.5
25x2500	190	20	25	2500	350	180	300	22	7.5

The three-roller plate rolling machine has a simple structure and is easy to operate. It is equipped with a mobile operating console/LCD digital display. The lower roller elevation remains unchanged, and feeding and operation are simple. The upper roller is electrically lifted and lowered vertically, and its position is digitally displayed to ensure the processing accuracy of the workpiece. The nut is made of alloy material. The frame is annealed as a whole to eliminate stress and never deform. The roller shaft is solid and integrally forged, and has been hardened by quenching and tempering, making it strong and durable.
We blend innovation with tradition. For over 30 years, we have been manufacturing premium bending and shearing machines that combine time-tested craftsmanship with modern technology. Our experienced team honors the legacy of precision engineering while embracing new advancements to enhance performance and efficiency. This unique fusion of old and new allows us to offer machines that are both reliable and cutting-edge, meeting the evolving demands of the sheet metal processing industry.
FAQ:
1. Are you a manufacturer? Can we visit your factory?
We are a manufacturer, located in Anhui, China. We have our own product design team.
You are welcome to visit our factory and check the quality of our machines on site, any problems will be solved on site at the first time.
2. What are the advantages of your machines? How can I trust the quality of your products?
The main configuration is imported high-quality products, and the professional product quality inspection team ensures the top quality, precision and life of the machine.
For example, Germany Bonsch Rexroth Valve Group, Germany Siemens Main Motor, Schneder Electric System, etc.
Once the test is qualified, our machine will be sent out. So the quality of our products is stable and reliable.
3. After placing an order, can you update the production process information in time?
After confirming your order, we will update you the production details by email and photos.
4. Can we be your agent?
Yes, we are looking for global agents, we will help agents to perfect the market and provide all services, such as machine technical problems or other after-sales problems, at the same time, you can get big discounts and commissions.
5. What payment methods do you accept?
You can pay to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance against copy of B/L.
6. What is the product warranty?
We offer warranty on our materials and workmanship. Our commitment is to make you satisfied with our products. Whether warranty or not, our company culture is to solve all customer problems and make everyone satisfied.
7. How about the shipping cost?
The shipping cost depends on the delivery method you choose. Express delivery is usually the fastest but also the most expensive way. For bulk goods, sea shipping is the best solution. We can only give you the exact shipping cost after we know the details of quantity, weight and method. Please contact us for more information.
8. Do you accept customer logos and customization?
We accept all kinds of customization, including logos and machines.
If you are interested, please get in touch with us.
