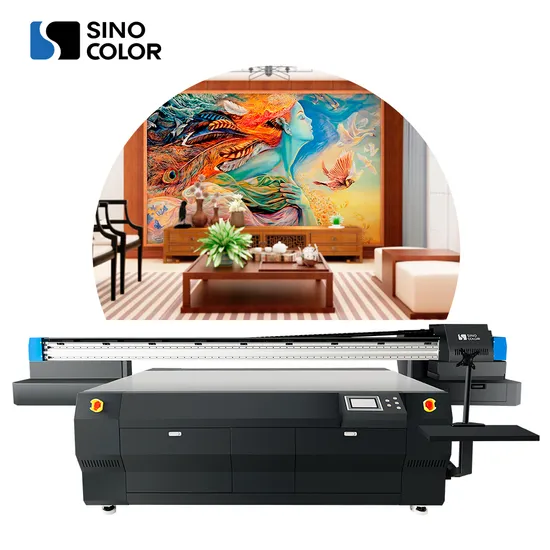

Manufacturer Supplied 2513 Large Format I3200 Ricoh Gen5/Gen6 Heads Varnish Available Acrylic PVC MDF Glass Board LED UV Flatbed Printer with Ai Visual Position
| US$17,999.00-26,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FB-2513S
Plate
Large Format UV Flatbed Printer
Structure
Flatbed
Color & Page
Multi-Colour Printing Press
Usage
Label Printer, Card Printer, Acrylic, Glass, Wood, Phone Case, Pen, Bottle
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
50sqm/H
System Supported
Windowsxp64
Model Number
Fb-2513s Large Format UV Flatbed Printer
Max Printing Size
250X130cm (200X300cm Available)
Printhead
2/3/4/5/6/8 PCS I3200-U or Ricoh Gen5/Gen6
Resolution
up to 2400dpi
Speed
50sqm/H
Color Mode
Cmyk/Cmyk+W/Cmyk+W+Varnish+Primer
Machine Vision System
Available for Ai Auto Positioning
Ink Type
UV Ink
Rotary Device
Available
Application
Phone Case, Acrylic, MDF, PVC Board,etc
Anti-Collision
Standard Equipped
Media Height Directing
Standard Equipped
Vacuum Platform
Standard Equipped. High-Power Independent Vacuum
White Ink Stirring
Standard Equipped
Transport Package
1 Set in 1 Polywood Box
Specification
L4300 W2280 H1790 (mm)
Trademark
SinoColor LED UV Flatbed Printer
Origin
China
HS Code
8443322100
Production Capacity
300 Sets Per Month
Packaging & Delivery
Package Size
430.00cm * 228.00cm * 179.00cm
Package Gross Weight
1500.000kg
Product Description
Product DescriptionManufacturer Supplied 2513 Large Format i3200 Ricoh GEN5/GEN6 Heads Varnish Available Acrylic PVC MDF Glass Board LED UV Flatbed Printer With AI Visual Position
With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-2513S UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more.
What Special Solution you can get from SinoColor FB-2513 Series Printer?
- UV DTF Cyrstal Sticker Printing
- Fluorescent M & Y
- Machine Vision Auto Positioning/ AI Visual Positioning
- Print the primer ON DEMAND
- Security ink printing
Quick Check
| Model Number | SinoColor UV Flatbed Printer FB-2513S Series |
| Size | 250x130cm (200x300cm / 200x320cm available) |
| Printhead | 2/3/4/5/6/8 pcs i3200-U or Ricoh GEN5/GEN6 |
| Color | CMYK/CMYK+W/CMYK+W+Varnish+Primer |
| Application | Phone Case, Acrylic board, MDF board, PVC board,glass, Metal, Ceramic, etc |
Smart partner for signage / decoration business
Detailed Photos
Product Parameters
| Model No. | FB-2513S (Pro) | FB-2513D (Pro) | FB-2513R | FB-2513Rs | |
| Printhead | Official i3200-U Printheads | Official i1600-U Printheads | Ricoh Gen5 | Ricoh Gen6 | |
| Number of Printheads | 2/ 3/ 4/ 6/ 8 pcs optional | 2/3/4/5/6/8 pcs optional | |||
| Resolution | Max 2400 dpi | Max 1440 dpi | |||
| Media | Thickness | 12 cm MAX | |||
| Size | 2500 x 1300 (mm) (200x300cm, 200x320cm, 160x120cm available) | ||||
| Types | Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, PE, PTFE Etc. | ||||
| Speed | Draft | 50 sqm/h ( CMYK, 4 heads ) | 45 sqm/h ( CMYK, 4 heads ) | 14 sqm/h(with 3 Print heads, Color+ White) | 17 sqm/h(with 3 Print heads, Color+ White) |
| Production | 32 sqm/h ( CMYK, 4 heads ) | 28 sqm/h ( CMYK, 4 heads ) | 10 sqm/h(with 3 Print heads, Color+ White) | 12 sqm/h(with 3 Print heads, Color+ White) | |
| High Quality | 24 sqm/h ( CMYK, 4 heads ) | 22 sqm/h ( CMYK, 4 heads ) | 8 sqm/h(with 3 Print heads, Color+ White) | 10 sqm/h(with 3 Print heads, Color+ White) | |
| Ink | Type | UV Ink | |||
| Color | CMYK/ CMYK + W/ CMYK + W + V/ CMYK + W + V + Pre-treating Liquid | ||||
| Capacity | 500 ML | ||||
| Dry System | UV_LED light system | ||||
| Negative Pressure System | Standard | Optional | Standard | ||
| Rip Software | MainTop (Standard) / FlexiPrint (Optional) | ||||
| PC Operation System | Windows 7/XP/10 | ||||
| Operation environment | Temperature: 20-28ºC, Humidity: 40%-60% | ||||
| Power Supply | AC 110/ 220V, 50/ 60Hz, 4800W | ||||
| Image Format | TIFF, JPEG, EPS, PDF… | ||||
| Size | Machine | L4160 × W2130 × H1520 mm | |||
| Packing | L4300 × W2280 × H1780 mm | ||||
| Weight | Machine | 1300 KG | |||
| Packing | 1500 KG | ||||
Printer will be packed 1 set in 1 poly-wood box. Standard packing fit for international shipping. Safe.
Packing Size: L4300mm W2280mm H1790mm Gross weight: 1500KG Delivery lead time: 7 working days after receipt of down payment. SinoColor Provide DDP (Door to door, Tax included) service to most countries. That means just wait at home after paid. No need to worry about customs clearance, and shipping. Please feel free to contact for more details.
