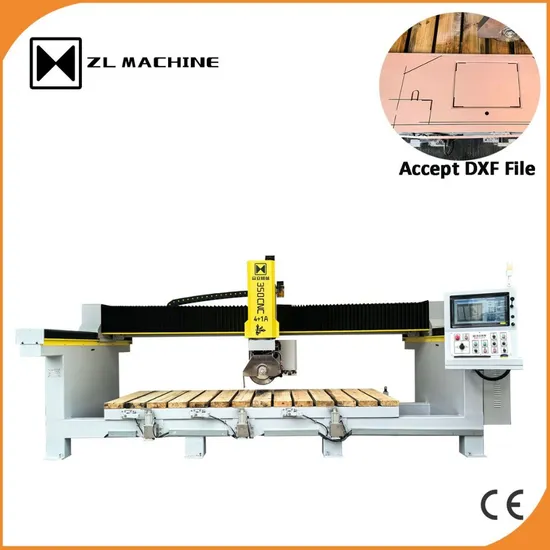

4 Axis CNC Countertop Cutting Machine Accept Dxf File

4 Axis CNC Countertop Cutting Machine Accept Dxf File

US$16,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZLBS-350CNC/4+1A
Type
CNC Cutting Machine
Usage
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V/220V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Control Center
Industry Computer with CNC
Driving Motor
Servo Motor
Railway
Linear Railway
Dimensions
L5100*W3150*H2500
Maximum Cutting
L3200xw2000xh65mm
Transport Package
Plastic Film Packaging
Specification
L5100*W3150*H2500
Trademark
ZL MACHINE
Origin
Taizhou, Zhejiang Province
HS Code
8464109000
Production Capacity
1000

Product Description

Product Parameters
Model ZLBS-350CNC/4+1A
Worktable Size 3200mm X 2000mm
Max.Cutting Size 3200mm X 2000mm X 65mm
Blade Diameter 300-350mm
Main Motor Power 15kw
Total Power 26.5kw
Dimensions L5100mm X W3150mm X H2500mm
Water Consumption 2 m3/h
Total Weight 4 Tons
X-axis X-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and planetary reducer. It ensure High-Speed and High-Efficiency Cutting.
Y-axis Y-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and reducer. It has oil-immersed structure, long-lasting and durable.
Z-axis Z-axis adopts 30 Linear Guide Rail and Ball screw.
C-axis
C-axis adopts high-precision Robot Reducer. Its can rotate 0~360 ° to process various shapes.
A-axis
A-axis can rotate to 0°and 45° with the structure of "Cylinders+ Backer", which has good stability.
Control center CNC System
Electric Spindle Rotation Speed: 24000rpm; 5.5kw Power
Shipment Can be loaded into a 20 feet Container.


Product Description
This Machine can cut slices, polygons, circles, ovals, horse belly shape, L-shaped countertops, Four-sided under-mount countertops, etc. for Marble, Quartz Stone, Granite, Ceramic and Sintered stones. It's a machine specialized for Kitchen, Bathroom Furnishing. With a milling cutter, it can mill basin holes, faucet holes, inner angle and shape lines.

Product Features
Mono-Block Structure, taking less space, easy to install High Speed, High Precision Cutting. C-axis and A-axis use Robot Reducer, with High Quality and Good Performance. Strong Machine Structure with #30 Guide Rail for X.Y.Z axis. With an Electric Spindle To put a milling cutter for Milling work. With a group of Rotating Cylinder to press workpieces during Milling work. (Specially designed by our factory) Automatic Oiling System, easy maintenance. With an touch-screen industrial Computer, use " ZL CUT" Software with clear interface and easy operation. Control system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate. The system accept Dxf file importing, make more cutting designs possibility. With Saw Blade Presetting Gauge(Measure the Blade Diameter Automatically) Applications


Packaging & Shipping
This model can be loaded into a 20' Container.
Company Profile
Certifications
FAQ:
Q: What is the MOQ of your machine?
A: Our MOQ is 1 set.

Q: What is your competitiveness?
A: Our factory has been in stone machine business for 30 years with a lot of invention patents. Since 2005, we have been one of the top ten brands of stone machinery in China. Since we are located in the most advantageous production area in China, our product cost is relatively low, and the technology is mature, so we can provide high-quality products at a very favorable price.
