Ultrafine Grinding and Classifying 3um-45um Acm Air Classifying Mill Production Line

Product Description

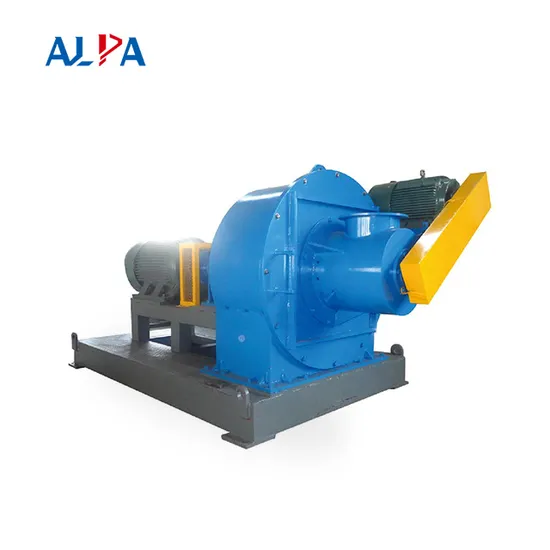

CSM-HJ Air Classifying Mill Widely used in non-metallic minerals (Mohs hardness less than 5), chemical, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials, new materials and other industries.

FEATURES AND ADVANTAGES Available D50:3~45μm. Classifying wheel is Horizontally installation Integration of grinding and classifying, classifying wheel is adjustable to obtain ideal particle. ; Compact structure and small occupation.easy to disassemble and clean, low cost. Lower installation power, wide application, high cost-performance. Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency. Key parts like the hammer, gear ring and classifying wheel are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product. Grinding is in closed system, low dust and noise, clean and environmentally friendly production process. PLC control system, easy operation. The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand. Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time. Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials.
WORKING PRINCIPLE
The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc. At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding. The grinded material moves to the classifying zone with the airflow. The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding. TECHNICAL PARAMETERS

Parameter		CSM-280HJ	CSM-400HJ	CSM-600HJ	CSM-800HJ	CSM-1000HJ	CSM-1250HJ
Power (kw)	Grinding Disc	7.5	18.5	30	45~55	75~90	132
	Classifier Impeller	4	4	11~15	15	22	30
	Feeder	0.55~1.1
Rotate Speed (r/min)	Grinding Disc	7500	5250	3350	2625	2100	1700
	Classifier Impeller	1000~8500	800~6000	600~4000	500~3000	400~2250	300~2000
	Feeder	20~100
Max Air Flow (m3/h)		500	1200	3000	4800	9000	12000
Product Size (um)		5~300			10~300
Production Capacity (kg/h)		2~120	15~600	25~1000	30~1500	60~2000	100~3000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
