Rubber Floor Mat Production/Rubber Tile Making/Interlocking Rubber Tile/Rubber Floor Mat/Rubber Ground Mat Making
Basic Info.
Model NO.
XLB-1100*1100*1/120T
Certification
ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Place of Origin
Shandong, China
Machinery Test Report
Provided
Warranty of Core Components
2 Years
Core Components
Gearbox, Motor
Machine Type
Plate Vulcanizing Press
Voltage
as Your Requirement
Dimension(L*W*H)
3500 X 3200 X 1800mm
Product Name
Rubber Tile Vulcanizing Press
Colour
Customized
Power(W)
5.5kw
Keywords
Rubber Tile Machine
Max Opening
250mm
Noise Level
Low Noise
Heating Mode
Eleciricity
Hot Plate
45 Steel
Transport Package
Customized
Specification
3500 x 3200 x 1800mm
Trademark
wanflon
Origin
China
HS Code
8477590000
Production Capacity
300sets/Year
Packaging & Delivery
Package Size
230.00cm * 120.00cm * 150.00cm
Package Gross Weight
3000.000kg
Product Description

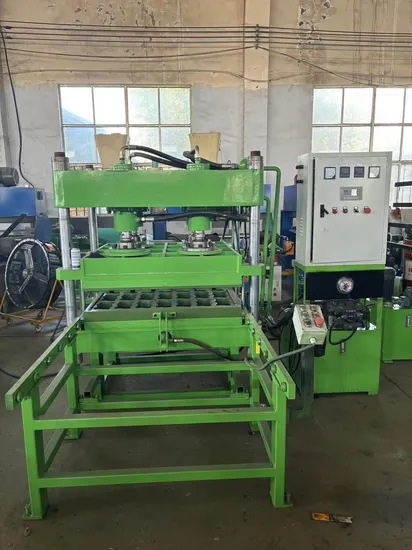

rubber floor mat production/rubber tile making/Interlocking Rubber Tile/Rubber Floor Mat/rubber ground mat makingThe complete making line including 2sets mixers, rubber tile vulcanizing machine and molds. It is mainly used to produce various size of rubber tiles from 1-5mm rubber granules.
1.feature:
1. we usually design as clients' products and details request. our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. and decide the working layers.
2.the machine is matched with manual push-out device .
3. we also can provide the different size of the molds, from 20mm to 75mm thickness.
4. rubber mixer can also provided, if needed.
5. The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine.
2. Advantage:
1. CE, ISO, SGS, excellent seal and long life.
2. High production efficiency, low mold-locking speed, protect mold.
3. Less energy consumption, low noise, without oil spilling or off pressure.
4. Reliable structure, easy to be operated.
Technical parameter of four column structure:
| Parameter/model | XLB 1200x1200x1 |
| Pressure (T) | 100/120/160 |
| Hot plate size (mm) | 1200*1200*60 |
| Plates Distance (mm) | 150-300 |
| Working layer | 1 |
| Hot plate quantity | 2 |
| Piston stroke (mm) | 150-300 |
| Motor power (kw) | 5.5/7.5 |
| Weight(kg) | 4000 |
