12psdw Nts619 Stainless Steel Worktops Diesel Fuel Pump Test Equipment

Product Description

Product Description Diesel Fuel Injection Pump/Common Rail Test Bench (12PSDW)

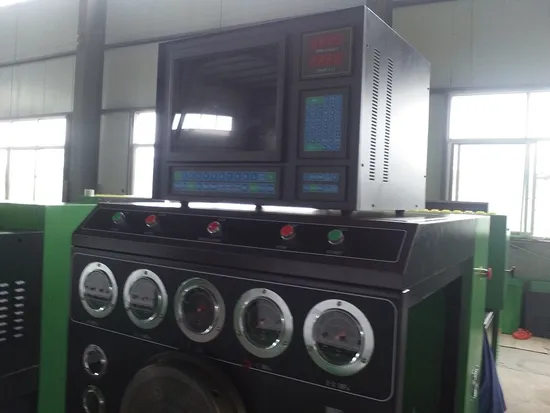

Test bench with digital screen and control and measured by the computer in real time.
12PSDW diesel fuel injection test bench (test stand) is designed for customers require. It adopts high quality frequency conversing device, and has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.
Output power(KW): 5.5, 7.5, 11, 15, 18.5 or other power on customer request.
Functions:
1. Measurement of each cylinder's delivery at various rotation speeds
2. Checking each cylinder's injection starting position and delivery interval angle
3. Checking and adjust the mechanical speed governor.
4. Checking and adjusting the distributor pump.
5. Checking and adjusting behavior of supercharging and compensatory device.
6. Measurement of the reflux delivery of distributor pumps
7. Checking the electromagnetic valve of distributor pumps. (12V/24V)
8. Measurement of the distributor pump's body internal pressure.
9. Measurement of the advance angle.
10. Checking the sealing of fuel injection pump body
11. Install tube of auto-sucking oil supply can check oil supply pump. (including VE pump. )
12. Measurement of rack travel (Option)
13. Machine oil lubrication system (Option)
14. Cast iron base (Option)
15. Forced Cooler system (Option)
Technical parameters:
1. Adjustable rotation speed range: 0~4000 RPM
2. Test cylinders: 12.
3. Rotation speed presetting: 10 kinds.
4. DC. Supply: 12/24V
5. Feeding pump motor: 1.1kw
6. Series of graduate glass: 45CC, 150CC. The 260CC is optional
7. Volume of oil tank: 60L
8. Main shafts Center height: 125mm
9. Flywheel inertia's moment: 0.8kg. M2,
10. Stoke counting: 50-9999
11. Control temperature of fuel oil (º C): 40± 2
12. Feed oil pressure: Low pressure 0-0.4MPa, high-pressure 0-4Mpa.
Internal pressure: 0-0.16MPa, 0-1.6MPa.
13. Rotation direction of Main shafts: Clockwise or Anticlockwise
14. Packing dimension: 5M3 CBM
15. Packing weight: 900kg
16. Output power: 5.5kw, 7.5kw, 11kw and 15 kw or on request
17. 3-phase power supply: 380V/50Hz or on request.
18. Color available: Green, blue, red, yellow or on request.

12PSDW Test Bench PACKING LIST
Accessories and main machine parts are all packed in accessories box
NO.	Name	Specification or Symbol	Quantity	Unit	Remark
1	Fuel Injection Pump Test Bench	12PSDW	1	Set
2	Feed Oil Pipes	M20×1.5×1200 (mm)	2	PC
3	High Pressure Oil Pipe	M14×1.5/M14×1.5×600 (mm)	12	PCs	With it injector itself
4	High Pressure Oil Pipe	M14×1.5/M12×1.5×800 (mm)	12	PCs
5	45ml Graduate	45ml	12	PCs
6	150ml graduate	150ml	12	PCs
7	Standard Injector	PB55ST42	12	PCs
8	Oil pump connector	M12×1.5	2	PCs
9	Oil pump connector	M14×1.5	2	PCs
10	Oil pump connector	M16×1.5	2each	PCs
11	Scale Lever		1	PCs
12	Rotational Joint	φ12.5 φ14.5 φ16.5	2each	PCs
13	Versatile angle iron		1	Set
14	Coupler	IIIIII.IV, V	1each/5pcs	PCs
15	Clamping Bracket		1	Set
16	T-type screw nail		3each	PC	One of them longer
17	Hexagon Wrench	S=10	1	PCs
18	Locating Block	IIIIIIP7, P7100 etc.	2each/14pcs	PCs
19	DC power supply wire	12/24V	1	PCs
20	Air Pipe assemble
