Teng Zhou Milling Machine Manufacturer for Sale X5040

Product Description

Teng zhou milling machine manufacturer for sale x5040 Product Application

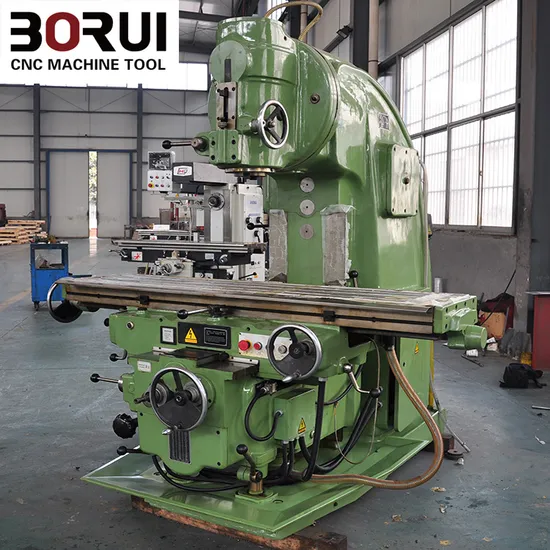

Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
The main specification :

Main specification	X5032	X5040
Table size	320 x 1325 mm	400 x 1700 mm
Spindle taper	7:24 ISO 50	7:24 ISO 50
Spindle bore	29 mm	29 mm
Distance from spindle nose to table surface	60-410 mm	30-500 mm
Distance from spindle axis to bed vertical guide way surface	350 mm	450 mm
T-slot(number/width/spacing)	3/18/70	3/18/90
Max. longitudinal travel manual/automatic	700/680 mm	900/880 mm
Max. cross travel manual/automatic	255/240 mm	315/300 mm
Max. vertical travel manual/automatic	350/330 mm	385/365 mm
Rapid speed longitudinal/cross/vertical	2300/1540/770 mm/min	2300/1540/770 mm/min
Max. turning angle of vertical milling head	±45°	±45°
Spindle travel	70 mm	85 mm
Number of spindle speed	18(steps)	18(steps)
Spindle speed range	30~1500 r.p.m	30~1500 r.p.m
Number of table feed	18(steps)	18(steps)
Main motor power	7.5 KW	11 KW
Feed motor power	2.2 KW	3 KW
Overall dimension	2294X1770X 1904	2556X2159X2258
Net weight/Gross weight	2900 /3200	4250/4350

Standard Accessories:
1.Drill chuck
2.Mill chuck
3.Inner hexagon spanner
4.Work light
5.Reduction sleeve
6.Draw bar
7.Spindle arbor
8.wrench
Optional Accessories: 1.DRO on X, Y, Z--AXIS
2.Clamping kit
3.Universal dividing head
The main feature :
1.One more powerful metal cutting machine,
2. High rigidity,
3. Wide range of spindle feed also can bear a heavy burden.
4.The spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,
5.Optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.
Advantage :
Rectangular guide ways
Hardened and ground table surface
Spindle swivels +/-45 degrees
Quill moves up and down

Product Dtails

Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
