CE CCC ISO Certificated Parallel Shaft Helical Gearbox

Product Description

Company Profiles

-We are a leading gear motor manufacturer
Zhejiang Donghai Reducer is a leading manufacturer of gear motor and gearbox.
Since 1991, we have specialized in manufacturing a wide range of gear motor and gear box including:
helical gear motor helical bevel gear motor parallel shaft helical gear motor helical worm gear motor hoist drive heavy-duty helical gearbox heavy-duty helical bevel gearbox gear motor for car parking system sprial bevel gearbox Product Description Product Description

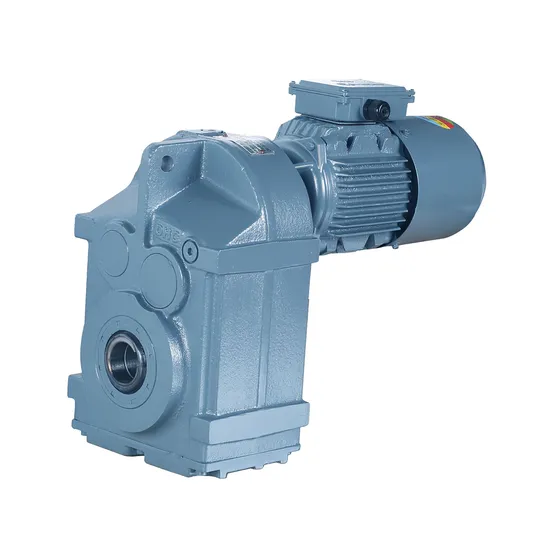

P series gear motor is composed with two-stage or three-stage gears. Input shaft and output shaft is parallel.
Mounting position: footed mounting, flange mounting, shaft mounting etc.
Technical data:
output speed: 10 ~ 752 rpm
rated output torque:10 ~ 20000 Nm
motor power: 0.12 ~ 200 KW

Detailed Photos
Product Parameters

Product features
1. P series parallel shaft helical gear motor are the perfect solution when installation space is limited under the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The many different sizes and designs ensure that the gearmotors can be used in a wide variety of applications even under the most unfavorable conditions,typically used in conveyor and materials processing applications.
General Technical data
								Housing material			HT250 high-strength cast iron
								Housing hardness			HBS190-240
Pinion material			20CrMnTiH
Gear material			20CrMnTiH
Surface hardness of gears			HRC58°~62 °
Gear core hardness			HRC33~40
Input/output shaft material			40CrMnTiH
Input / Output shaft hardness			HRC25~30
Machining precision of gears			accurate grinding, 6~7 Grade
Lubricating oil			GB L-CKC220
Heat treatment			tempering, cementiting, quenching, etc.
Efficiency			94%~96% (depends on the transmission stage)
Noise (MAX)			60~68dB
Temp. rise (MAX)			40°C
Temp. rise (Oil)(MAX)			50°C
Vibration			≤20µm
Backlash			≤20Arcmin
Brand of bearings			China Top brand C&U,LYC,TMB or other brands requested,
Brand of oil seal			CTY--- Taiwan or other brands requested
P ---- series parallel shaft helical gear motor
P-series single stages
Model	Output Shaft Dia.	Center Height	Output Flange Dia.	Power	Ratio	Permitted Torque	Output Speed
	Solid (mm)	(mm)	(mm)	(kw)		(Nm)	(RPM)
P37	25k6	112h13	110/160	0.12~3	3.88~130	240	10~374
P47	30k6	128.1h13	130/200	0.12~3	9.15~622	435	2.2~157
P57	35k6	136h13	180/250	0.12~5.5	5.21~200	605	6.5~276
P67	40k6	159.5h13	180/250	0.18~5.5	4.14~225	830	5.7~360
P77	50k6	200h13	230/300	0.25~11	4.28~280	1720	3.1~336
P87	60m6	246.7h13	250/350	0.37~22	4.13~1300	3060	1.1~356
P97	70m6	285h13	350/450	1.1~30	4.52~253	4400	3.6~131
P107	90m6	332.4h13	350/450	1.1~45	6.29~253	8990	2.7~236
P127	110m6	382.6h13	450/550	4.0~90	4.84~176	13800	4.2~316
P157	120m6	447h13	550/660	5.5~200	12.5~207	20250	3.3~125
P series double stages
Model	Output Shaft Dia.	Center Height	Output Flange Dia.	Power	Ratio	Permitted Torque	Output Speed
	Solid (mm)	(mm)	(mm)	(kw)		(Nm)	(RPM)
P37D17	25k6	112h13	110/160	0.12~0.18	129~322	190	4~10
P47D17	30k6	128.1h13	130/200	0.12~0.18	178~622	400	2.2~7.4
P57D37	35k6	136h13	180/250	0.12~0.37	134~967	615	1.4~10
P67D37	40k6	159.5h13	180/250	0.12~0.55	175~1429	900	0.9~8
P77D37	50k6	200h13	230/300	0.12~0.75	280~2613	1690	0.51~4.9
P87D57	60m6	246.7h13	250/350	0.12~1.5	249~4954	3070	0.28~5.7
P97D57	70m6	285h13	350/450	0.12~2.2	363~7348	4390	0.19~3.9
P107D77	90m6	332.4h13	350/450	0.12~4.0	255~14767	9630	0.09~5.6
P127D77	110m6	382.6h13	450/550	0.12~5.5	376~22323	13500	0.06-3.8
P127D87	110m6	382.6h13	450/550	5.5~11	166~418	13500	3.4~8.7
P157D97	120m6	447h13	550/660	0.55~11	197~6295	19710	0.22~7.3

Remarks: please refer to our catalogue or ask for sales man when your technical requirements are special.
Company Profile
Zhejiang Donghai Reducer Co., LTD is professionally manufacturing gear motor and gear box, with more than 20+years experience,And an industrial and trading company have been set up in Shanghai, known as "Shanghai Teguosi Transmission Equipment Co., Ltd", and shorten as " DHC•TGS", mainly researching and developing high-quality transmission equipment, providing complete sets of equipment for the global intelligent industry in accordance with European standards, National standards and Enterprise standards. Our products had been Certified by CE,CCC,CQC,XT. As a leading brand of domestic transmission equipment, it is also a National High-tech Enterprise, a director of the China Heavy Machinery Industry Association, and a Parking Equipment Working Committee and a Bridge Crane Professional Committee. Your reliable supplier ,we assure you the utmost reliability and security for both product and services
Our Advantages Our Advantages: Your professional supplier with 20+years experience
Widely Used In Different Industries
Package
Plastic bag + wooden carton

FAQ FAQ
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: E, D, T, and P series helical gear motor and
hoist drive
heavy-duty helical gearbox
heavy-duty helical bevel gearbox
gear motor for car parking system
sprial bevel gearbox
more than one hundred models and thousands of specifications
2.Q: How long is your delivery time?
A:Generally it is 5-10 days if the parts are in stock. or it is 15-40 days if the parts are not in stock.
3.Q: What is your MOQ?
A:1 Set
4.Q: :Can you make as per custom drawing?
A:Yes, we offer customized service for customers.
If you have any demand for our products please feel free to contact me.
