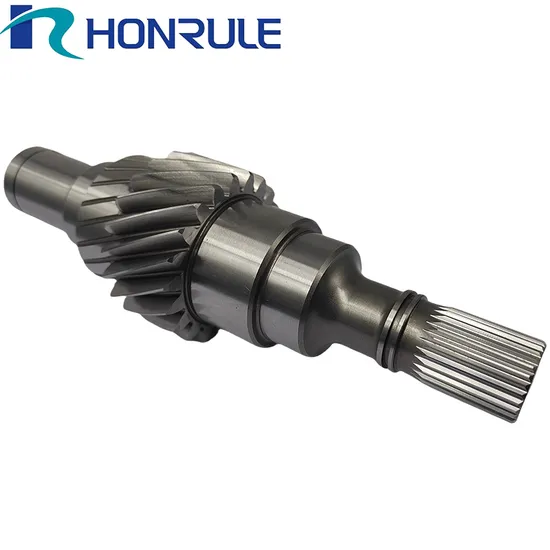

OEM Manufacture Factory Direct Sale High Quality Transmission Gearbox Input Gear Shaft

Product Description

Product Description Why choose us ? Cover an area of more than 10000m2 workshop ,capacities prove everything +28years of production experience,5S tandard workshop Annual output is 6000000 units Has obtained ITAF16949,ISO 14001,ISO45001 certifications 7pcs imported excellent Testing equipments (CMM,Gear accuracy ,measuring instruments.etc )and 6 persons R&D teams Imported CNC and lathes Provide OEM and ODM service .there have more than 30 products shapes to choose and meet your every needs

Capabilities of Gears/ Gear shafts	Internal Gears				External Gears
Max O.D.	15-300 mm
Module	M0.8-6
DIN Class Level	DIN class level range 4-7
Tooth Finish	Ra 0.4-1.6
Max Helix Angle	0-45°
Heat treatment	High Frequency Quenching,Hardening and Tempering,Carburizing,etc
Manufactured method	Hobbing, Milling, Drilling, Shaving, Grinding
Surface treatment	Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating

Our capability

CNC turning parts	Length	0.5 meter max
	Diameter	0.4 meter max
	Height	0.3 meter max
CNC Hobbing parts	Diameter	0.35 meter max
	Length	0.5 meter max
	Width	0.4 meter max
	Height	0.4 meter max
Groove/Slot	Width	0.1 millimeter min
	Depth	5 millimeter max
Bore hole	Diameter	5 millimeter min
	Depth	500 millimeter max
Geometric tolenrance	Straightness	0.01 millimeter min
	Flatness	0.01 millimeter min
	Roundness	0.002 millimeter min
	Cylindricity	0.002 millimeter min
	Profile of a line	0.002 millimeter min
	Profile of surface	0.003 millimeter min
	Angularity	0.01 millimeter min
	Perpendicularity	0.003 millimeter min
	Parallelism	0.003 millimeter min
	Position	0.02 millimeter min
	Concentricity	0.002 millimeter min
	Symmetry	0.003 millimeter min
	Circular runout	0.002 millimeter min
	Total runout	0.003 millimeter min
General tolenrance	0.002mm min. from CNC
Surface roughness	based on customer's requirements.

Detailed Photos
About gears
1. Spur Gear
Spur gears or straight-cut gears are the simplest type of gear. They consist of a cylinder or disk with teeth projecting radially.
2. Helical Gear
Helical gears are similar to spur gears except that their teeth are cut at an angle to the hole (axis) rather than straight and parallel to the hole like the teeth of a spur gear.
3. Worm Gear
The worm gear consists of a screw-shaped cut on the shaft (worm) and the mating gear (worm wheel). This gear type transmits the power in non-intersecting shafts that make right angles.
4. Herringbone Gear
This set of quite similar to the double helical gear. However, they are smaller and have no space between the two helical faces. Herringbone gears have two helical gears joined side to side.
5. Hypoid Gear
Hypoid gears appear similar to spiral bevel gears, but they function in non-intersecting shafts. They operate at 90 degrees and are common in automobile sectors.
6. Internal Gear
An internal gear is a gear with teeth cut into the inside of a cylinder or cone. They are also known as ring gears or annuli.
7. Planetary Gear
An epicyclic gear train is a gear reduction assembly consisting of two gears mounted so that the center of one gear revolves around the center of the other.
Packaging & Shipping
Company Profile
FAQ 1. Are you a manufacturer or a trading company?We are a factory located in Zhejiang, China, with 20 years of rich experience, covering more than 10000 square meters. Complete facilities, including 3D quality inspection equipment, MES system and 100 machines. If necessary, we can provide you with material certificates, sample quality inspection and other reports. 2. How to get a quote?Detailed drawings (PDF/STEP/IGS/DWG...), including delivery date, materials, quality, quantity, surface treatment and other information.3. Can I get a quotation without drawings?Can your engineering team draw for my creativity? Of course, we are also glad to receive your samples, pictures or detailed size drafts for accurate quotation.4. Can you provide samples before mass production? Of course, the sample fee is necessary. If possible, it will be returned during mass production.5. What is the delivery date? Generally, the sample lasts for 1-2 weeks and the batch production lasts for 3-4 weeks.6. How do you control quality?(1) Material Inspection - Check material surfaces and approximate dimensions.(2) First inspection of production - ensure.critical dimensions in mass production. (3) Sampling inspection - check the quality before delivery to the warehouse. (4) Preshipment inspection - 100% inspection by QC assistant before shipment. 7. After sales service team If you have any problems after receiving the product, you can provide feedback through voice call, video conference, email, etc. within one month. Our team will provide you with solutions within a week.
