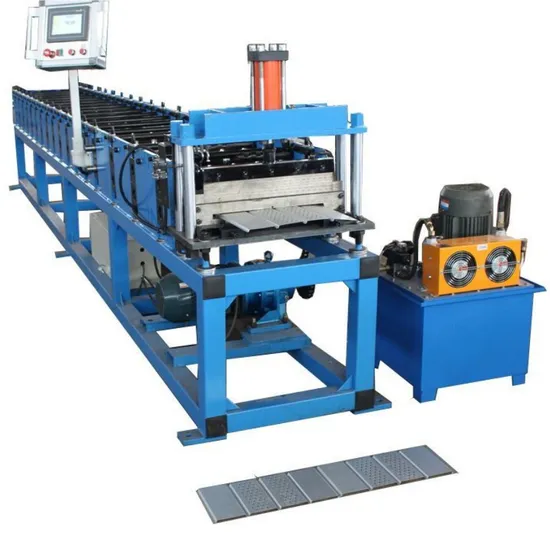

Steel Ceiling Channel Panel Roll Forming Machine

Product Description

We have the most professional technical team and rich experience in production and manufacturing. We are the manufacturer, and the customer requirements as the driving force for our development, keep pace with The Times and keep innovating.if you are interestedour machine and want to know more information ,please contact me at first time .We can customize and design according to your needs,+8-6-177-369-86-169 please contact me

9. Suitable material to process Material: galvanized steel strip, galvalume steel strip; Thickness: 0.3mm - 1mm; Width: as per drawing. 10. Technique parameters of the main roll forming machine (1). Forming stations: 16; (2). Roller material: GCr15 steel with CNC machining; (3). Diameter of shaft: ¢80mm solid forged 45 #steel, quenching process; (4). Material of shaft: solid 45# steel with grinding process; (5). Frame of the machine: welded with 350H section steel; (6). Wall panel thickness: 20mm; (7). Forming motor power: 3KW; (8). Flying saw cutting; (9). Control system: PLC brand is DELTA from Taiwan; (10). Material leveling device; (11). Driving mode: double 1.2" chains; (12). Forming speed: 0-10m/min; (13). Power supply: 380V, 50HZ, 3 PHASES; (14). 80T punch with one set die and serve feeding 11. The Chart of Process Flow

Manual Decoiler ---Leveling & Feeding Device --- Punch --- Main Roll Forming System ---
PLC Control System --- Hydraulic Station System --- Cutting System --- Receiving Table
1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.
1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.
FAQ
1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 20 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc

10. Q:Any certification?
A:Yes, we have SGS ISO certification. Packaging & Shipping
1.All export goods will be packed according to customer requirements before shipment and used in roof sheet roll forming machine.2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs.
Payment Term
1. Minimum order quantity (MOQ): 1 piece2. Delivery time: about 45 workdays3. Port of loading: port of XinGang4. Type of payment: by T/T or by L/C5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.

After Sales Service
1. The warranty of c purlin roll forming machineis two years after the client receives the machine.Within the two years, we will courier the replacement parts to the client free of charge.2. We offer technical support for the entire life of our machines.3. We can send our technicians to install and train the workers in the clients' factories with extra cost
