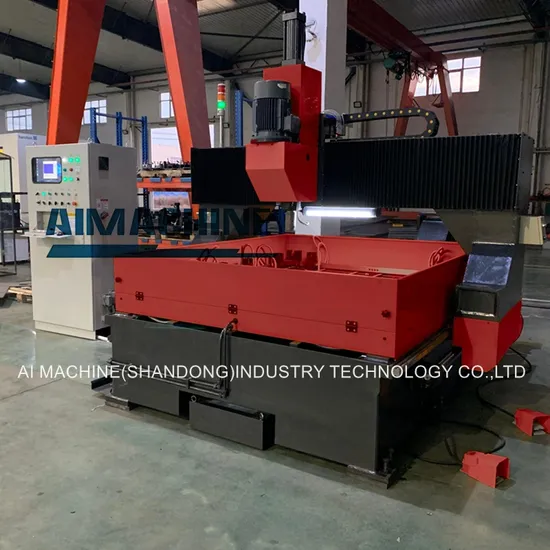

High Speed 3000r/Min CNC Steel Plate Tube Sheet Flange Gantry Hole Drilling Machine

Product Description

Product Description
Apply scope:
For steel structure, tower, bridge, mechanical processing and other industries of the connecting plate, baseboard drilling processing.
1.The bed is made of high quality gray cast iron,no need foundation.
2.Double side lead screw synchronous driving system,stable performance,flexible movement,accurate positioning.
3.Adopting slide head drilling and milling power head,it can realize the automatic conversion of fast forward,drillng and quick
n,and has the function of automatic chip breaking.
4.Adopt BT40 high speed internal cooling precision spindle,can adopt hard alloy internal cold drill bit,processing efficiency
ery high.
5.Equipped with pneumatic knife cylinder automatic knife replacement,optional tool magazine.
6.CNC + servo motor control,can directly transfer Auto CAD drawings to general processing program.
7.Automatic chip removal,cooling liquid recycling.

Product Parameters

Model		PHD1616	PHD2016	PHD2020
Processing size	L*W(mm)	1600*1600	2000*1600	2000*2000
Drilling spindle	Thickness(mm)	15-100
	Spindle speed	45-4500
	Qty.of spindle	1
	Model of spindle	BT40
	Feeding stroke(mm)	260Servo feeding
	Tapping dia.(mm)	M20

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
Other products

FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
