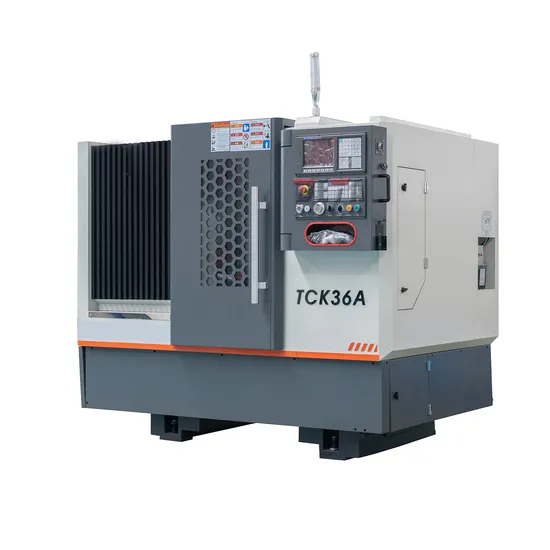

Tck36A Tck46A Tck50A Metal Turning Inclined Bed CNC Lathe
Basic Info.
Model NO.
TCK36A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Turret
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
High Precision Slant Bed CNC Turning Center Lathe
Max.Swing Over Bed
360mm
Max.Processing Length
300mm
Tool Post Type
8 Station Turret
Spindle Nose
A2-5
Chuck
Manual Chuck
Voltage
380V
OEM
Available
MOQ
1 Set
Delivery Time
1 Month
X Axis Travel
170mm
Z Axis Travel
350mm
Spindle Speed
4000rpm
Guideway
Taiwan Linear Guideway
Spindle Bore
48mm
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
HS Code
8458110090
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description
TCK36A TCK46A TCK50A Metal Turning Inclined Bed CNC Lathe(with tailstock)
Standard accessories:
GSK980TC3 CNC controller,
Taiwan high precision linear rolling guide way,
5.5 kw servo BL main spindle motor,
spindle unit high spindle speed 4000rpm,
6 inch hollow type hydraulic 3-jaw chuck,
8-station hydraulic turret,
Hydraulic tailstock,
automatic lubrication system and cooling system,
work light, signal light
Optional accessories:
Siemens/Fanuc CNC controller
chip conveyor
Specification:
| Model | Unit | TCK36A | TCK46A |
| Max. Swing over bed | mm | Φ360 | Φ460 |
| Max. Swing over carriage | mm | Φ140 | Φ260 |
| Max. Turning length | mm | 300 | 350 |
| Chuck size | inch | 6 inch | 8 inch |
| X-axis travel | mm | 170 | 240 |
| Z-axis travel | mm | 350 | 400 |
| Max. Spindle speed | rpm | 4000rpm | 3500rpm |
| Spindle speed change | Stepless | Stepless | |
| Spindle nose | A2-5 | A2-5 | |
| Spindle bore diameter | mm | Φ48 | Φ56 |
| Through bar capacity | mm | Φ40 | Φ45 |
| X/Z-axis rapid traverse | m/min | 24/24 | 24/24 |
| X/Z-axis motor torque | NM | 6/6 | 7.5/7.5 |
| Main motor power | KW | 5.5 | 7.5 |
| Standard Turret | 8 station turret | 8 station turret | |
| Tool shank size (square turning tool/boring cutting tool) | mm | 20x20/Φ25 | 25x25/Φ32 |
| Quill diameter | mm | 65 | 70 |
| Tailstock quill taper | MT4 | MT5 | |
| Max. Travel of tailstock | mm | 200 | 200 |
| Max. travel of quill | mm | 70 | 80 |
| Slant bed | degree | 45 degree slant bed | 30 degree slant bed |
| Total rated power | kw | 9 | 11 |
| Total rated current | A | 19 | 23 |
| Overall dimension(L*W*H) | mm | 2200x1600x1850 | 2500x1700x1980 |
| Machine weight | KG | 2400 | 3000 |
