Fully Automatic Toilet Paper Production Line

Product Description

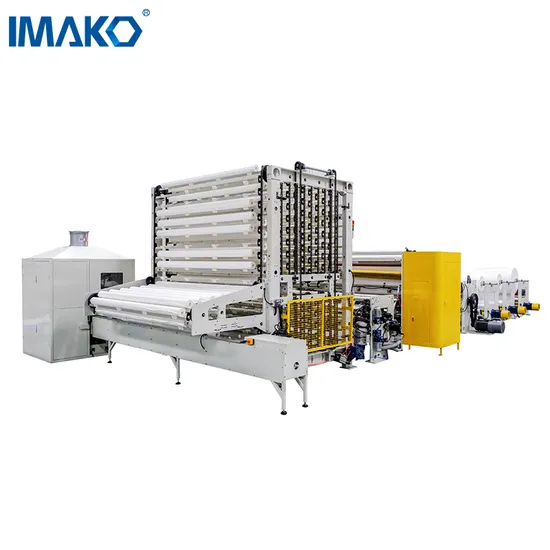

Toilet Roll Paper Making Machine Product Description This kitchen towel production line is full automatic, no need to stop to winding or changing paper. It contains Backstand part , Winding machine,Perforate part,Edge embossing part, Glue sealer,Accumulator,Embossing and lamination device, Paper core machine and holder, Log saw cutter.
Machine design parameters

No.	Item	Parameter
1	Equipment name	X2C-2900 Rewinding production line with core
1.1	Design speed	250m/min
1.2	Working speed	200m/min (According to the jumbo roll gram weight, quality)
1.3	Winding theory	Paper core tube glue winding
1.4	Max. width of jumbo roll	2860mm
1.5	Backstand jumbo roll diameter	≤¢1500mm
1.6	Max. diameter of winding	¢150mm
1.7	Min. diameter of winding	¢90mm
1.8	Adapt to jumbo roll	14-30g/m^2

Winding machine

No.	Item	Technical parameter
1	Roller surface width	2900mm
1.1	Roll changing method	Continuous operation, no need to stop winding or changing paper
1.2	Paper break way	Paper break inside the machine
2	Diameter of finished product	¢90-150mm Core roll diameter range ¢ 90-150mm
2.1	Finished paper roll density adjustment	Data control via touch screen
2.2	Rewinding diameter adjustment	Servo motor control
2.3	Rewinding length adjustment	Controlled by touch screen data, the accuracy of section number is ± 1 section
2.4	Finished paper core tube outer diameter	35mm--50mm,(specifications are specified by the customer)
2.5	Drive	Independent motor
3	Embossing function	Installed on the winding main machine
3.1	Embossing way	Integral air bag compression method
3.2	Embossing wheel	Surface laser engraved pattern
3.3	Embossing wheel quantity	Determined by the size of the pattern
3.4	Drive	Independent motor
4	Spiral knife shaft structure	Four-piece perforator surface knife
4.1	Perforated line ratio	4:1,8:1
4.2	Perforation pitch error	±1mm
4.3	Pitch	95-250mm (touch screen adjustment)
4.4	Paper wrapping automatic induction protection system	With
4.5	Drive	Independent motor

Whole machine configurations

No.	Name	QTY	Unit	Remark
1	Backstand part	2	group	1.51.5 m diameter jumbo roll
2	Rewinding main machine part	1	set	280Includes 280 strip paper core tube storage units
3	Perforate part	1	set
4	Edge embossing part	1	set	,No embossing wheel, have embossed bottom roller
5	F25Glue sealer	1	set
6	LS160-4L 4 line log saw machine	1	set
7	A130Accumulator	1	set
8	steel to rubber roll embossing	1	set	Optional item
9	embossing and lamination device	1	set	Optional item
10	C75paper core machine	1	set
11	Paper core holder	1	set
12	Common DC bus + motion control system	1	set

Example of capacity calculation method (Have core roll paper)
Jumbo roll gram weight 16gsm, 2 layers, width 2850mm, efficiency factor 70%, production time 10h, production speed 200m / min
200 (m / min) X2.85 (m) X0.016X2 X10 (hour) X60 (minute) X0.7 (efficiency) = 7660kg = 7.6 tons
(Note: The above capacity calculations are for reference only)
Equipment performance inspection and acceptance:

No.	Item	Inspection and acceptance requirements
1	Main machine speed	200m/min(Depending on the quality of the jumbo roll)
2	Sealing speed	12-13 strips/min. / (Depending on the roll paper diameter)
3	Log saw speed	80-120 cut/min./(Depending on the specific product)
4	Finished diameter tolerance	+/-2mm
5	Perforation pitch tolerance	+/- 1mm
6	Ending length tolerance	+/-3mm
7	Cutting length tolerance	+/-2mm
8	The perpendicularity of the section and the axis	+/- 1mm
9	Paper core length tolerance	+/-2mm
10	The virtual tangent line is clear, uniform and beautiful. There are no holes caused by machine causes on the virtual tangent line, and no holes caused by machine cause on the non-virtual tangent line.
