Hot Selling Cr6241-Cr6266b Gear Head Lathe Turning Center Universal Horizontal Lathe

Product Description

Product Description
The surface of the bedways is supersonic frequency hardened
The spindle bore size is 105mm.the spindle system is high rigid and accuracy
There is no need for change gears,the machine can turn about 89 kinds of metric,Inch,Module,and D.P.threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of certain length.
One-piece iron casting base allows heavier cuts.

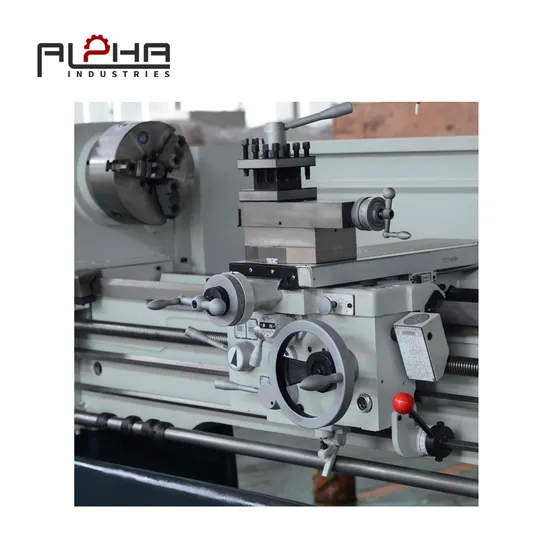

Machine comes with rapid travel on apron available Product Parameters

Basic Info.
Model NO	CR6241		Guide Rai	Horizontal Guide Rail
Tool Holder	4Tool Post		PowerSource	Electric
Controlling Mode	Artificlal		Automatic Grade	Manual
Setting Mode	Floor-type		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Specification	2200x1080x1370mm		Trademark	Alpha industries
Origin	China		Production Capacity	100 Sets/Year

Technical Parameters

MODEL	CR6241	CR6246	CR6251S	CR6246B	CR6251L	CR6251	CR6256	CR6256B	CR6266	CR6266B
CAPACITY
Distance between centers	1000mm(40")/1500mm(60")/2000mm(80")					1000mm(40")/1500mm(60")/2000mm(80")/2300mm(90")/3000mm(120)
Max.swing over bed	410mm	460mm	510mm	460mm	510mm	510mm	560mm	560mm	660mm	660mm
	(16")	(18")	(18")	(18")	(20")	(20")	(22")	(22")	(26")	(26")
Max.swing over cross slide	220mm	270mm	320mm	270mm	320mm	305mm	355mm	355mm	455mm	455mm
Width of bed	300mm					350mm			350mm
Max.swing over gap	640mm	690mm	740mm	690mm	740mm	735mm	785mm	785mm	885mm	885mm
Length of gap	165mm					200mm			200mm
SPINDLE
Spindle nose	D1-6			D1-8		D1-8			D1-8
Spindle bore	58mm			80mm	80mm	80mm	80mm	103mm	80mm	103mm
Taper bore of spindle	No.6			No.7	No.7	No.7		φ113	No.7 Morse	φ113
	Morse			Morse	Morse	Morse		(1:20)		(1:20)
Steps of spindle speed	12					12			12
Range of spindle speed	25-2000			25-1700	25-1700	25-1600		25-1500	25-1600	25-1500
	r/min			r/min	r/min	r/min		r/min	r/min	r/min
RANGE OF THREAD CUTTING
Metric threads	41 kinds,0.1-14mm					47 kinds 0.2-14mm			47 kinds 0.2-14mm
Imperial threads	60 kinds, 2-112TPI								60 kinds, 2-112TPI
Module threads	34 kinds, 0.1-7MP								34 kinds, 0.1-7MP
Diametral threads	50 kinds, 4-112DP								50 kinds, 4-112DP
RANGE OF FEED
Range of longitudinal feeds	42 kinds,					35 kinds,			35kinds,
	0.031-1.7mm/rev					0.059-1.646mm/rev			0.059-1.646mm/rev
Range of cross feeds	42 kinds,					35 kinds,			35kinds,
	0.014-0.784mm/rev					0.020-0.573mm/rev			0.020-0.573mm/rev
TAILSTOCK SLEEVE
Dia.of tailstock sleeve	60mm					75mm			75mm
Travel of tailstock sleeve	128mm					180mm			180mm
Taper of tailstock sleeve	No.4 Morse					No.5 Morse			No.5 Morse
OTHERS
Size of tool shank	25x25mm
Max travel of cross slide	285mm					326mm			355mm
Max travel of compound rest	128mm					130mm			130mm
Main motor power	5.5kW				7.5kW	7.5kW			7.5kW
Overall dimensions	220/280/330x108x137/139/142cm					240/285/335/370/435x115x146cm			240/285/335/370/
(L×W×H)									435x115x151cm
Packing size	225/282/340x113x156cm					245/290/340/375/440x115x174cm			245/290/340/375/
(L×W×H)									440x115x182cm
Net weight	1670/1920/2070kg	1720/1970/2120kg	1725/1975/2125kg	1725/1975/2125kg	1775/2045/2200kg	2150/2270/2530/2610/2930kg	2290/2410/2670/2750/3070kg	2300/2420/2680/2760/3080kg	2420/2540/2800/2880/3200kg	2430/2550/2810/2890/3210kg
Gross weight	1980/2265/2450kg	2045/2330/2515kg	2050/2335/2520kg	2050/2335/2520kg	2100/2405/2595kg	2530/2660/2930/3020/3410kg	2670/2800/3070/3160/3550kg	2680/2810/3080/3170/3560kg	2800/2930/3200/3290/3680kg	2810/2940/3210/3300/3690kg

Standard Accessories

3 jaw chuck and adapter	4 jaw chuck and adapter	face plate	steady rest
follow rest	oil gun	one pc iron casting stand	operation manual
one set of wrenches	2 dead centers	sleeve	foot brake
coolant pump	halogen lamp	splash guard	micro carriage stop

Optional Accessories

quick change tool post	driving plate	taper turning attachment	digital readout(1.5/2/3)
Nr 12 standard for Brazil

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
