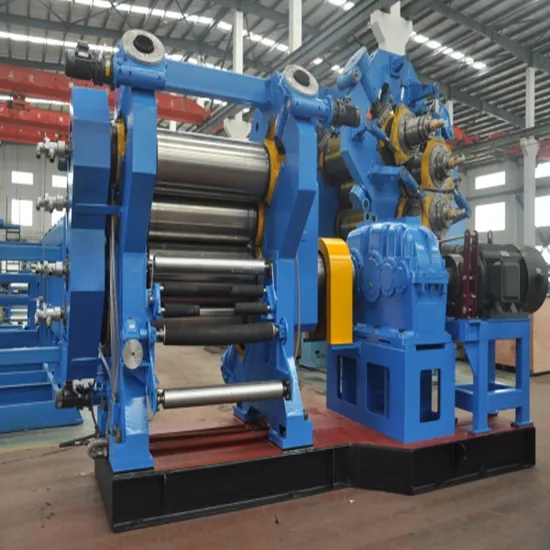

Four Roll Rubber Sheet Calendering Machine / Calender Roll Mill
| US$13,999.00 | 1 Set (MOQ) |
Basic Info.
Control Type
PLC
Automatic Grade
Automatic
Power Source
Electric
Type
Rubber Calender
Condition
New
Place of Origin
Shandong, China
Application
Put Rubber on Fabrics, to Rubberize Fabrics, or to
Origin
Shandong
Product Description
Four Roll Rubber Sheet Calendering Machine / Calender Roll Mill Product DescriptionApplication:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film. Product Parameters
| Model | XY-4I(Γ) 230*630 | XY-4I(Γ) 252*720 | XY-4I(Γ) 300*900 | XY-4I(Γ/S) 360*1120 |
| Roll diameter(mm) | 230 | 252 | 300 | 360 |
| Working length of rolls(mm) | 630 | 720 | 900 | 1120 |
| linear speed of middle roll(m/min) | 2.1- 21 | 1.59-15.9 | 1.8-18 | 2-20.1 |
| Speed ratio | 1:1:1:1 | 1:1:1:1 | 1:1:1:1 | 0.733:1:1:0.733 |
| Adjusting nip range (mm) | 0-10 | 10 | 10 | 0-10 |
| Min. calendaring product thickness(mm) | 0.2 | 0.2 | 0.2 | 0.2 |
| Calendaring product width(mm) | 500 | 580 | 700 | 920 |
| Driving motor power(kw) | 15 | 22 | 45 | 55 |
| Overall size(L*W*H) mm | 3800*930*1890 | 2950*990*1645 | 4400*1650*2200 | 3330*1940*2350 |
| weight(ton) | 4.8 | 5 | 12 | 16 |
| XY-4I(Γ) 400*1200 | XY-4I(Γ) 450*1400 | XY-4I(Γ/S) 550*1500 | XY-4I(Γ/S) 610*1730 | XY-4I(Γ/S) 700*1850 | XY-4I(Γ/S) 710*2130 |
| 400 | 450 | 550 | 610 | 700 | 710 |
| 1200 | 1400 | 1500 | 1730 | 1850 | 2130 |
| 3-36.3 | 2.5-25 | 3-30 | 8-50 | 4-40 | 3-30 |
| 1:1.383:1.383:1 | 1:1.5:1.5:1 | 1:1.5:1.5:1 | 1:1.4:1.4:1 1:1.4:1.4:1.4 | 0.5-1 adjustable | 1:1.5:1.5:1 |
| 0-10 | 0-10 | 0-10 | 0-20 | 0-30 | 0-20 |
| 0.2 | 0.2 | 0.2 | 0.15 | 0.2 | 0.15 |
| 1000 | 1220 | 1300 | 1500 | 1600 | 1900 |
| 75 | 110 | 160 | 185 | 90kw * 2 110kw*2 | 220 |
| 6400*1620*2490 | 6500*1970*2740 | 7550*2400*3400 | 6580*2460*2920 | 9950*3600*4870 | 7010*4150*3730 |
| 20 | 23 | 45 | 50 | 110 | 100 |
Detailed Photos
Company Profile
