Feed Pharmace Hammer of Feed Mill Screen

Product Description

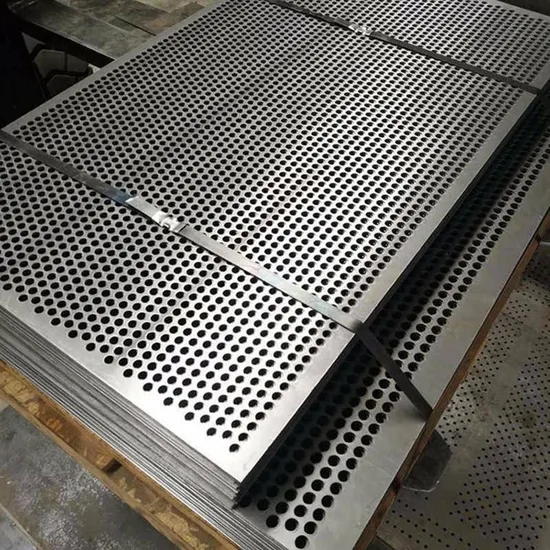

Hammer Mill Spare Parts Screen
Features of Screens
· Durability and superior quality.
· Efficient grinding and gap adjustment.
· Wear resistant, long service life, saving cost.
· High porosity, high output and high benefits.
· No leakage of materials and labor&time saved.
· Good appearance,smooth screen sheet, low breakage.
· Easy screen changes and easy maintenance.
· Customized the screen size.
· Competitive price, complete after-sales service
Type of ScreensCustomizable !!!
It can be processed into various kinds of apertures, such as 0.2mm,0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm.

Thickness(mm)	Hole Diameter(mm)	Hole Area Ratio	Hole Diameter Tolerance	Hole Centre Distance Tolerance
1.0	1.0	20%	±0.05	±0.12
	1.2	30%	±0.05	±0.15
1.2	1.2	30%	±0.05	±0.15
	1.5	33%	±0.05	±0.15
1.5	1.5	35%	±0.06	±0.15
	2.0	38%	±0.06	±0.15
1.8	1.8	40%	±0.06	±0.15
	2.5	48%	±0.06	±0.15
2.0	2.0	42%	±0.06	±0.15
	2.2	45%	±0.07	±0.17
	2.5	48%	±0.07	±0.17
	3.0	52%	±0.07	±0.17
	3.2	55%	±0.07	±0.17
	3.5	58%	±0.07	±0.17
	4.0	60%	±0.07	±0.17

**Various screens for choice.
**Customized.
**Quality assurance
Welcome to consult to negotiate!
