Automatic Rock Wool Roll Production Equipment for Industrial and Construction Industry

Product Description

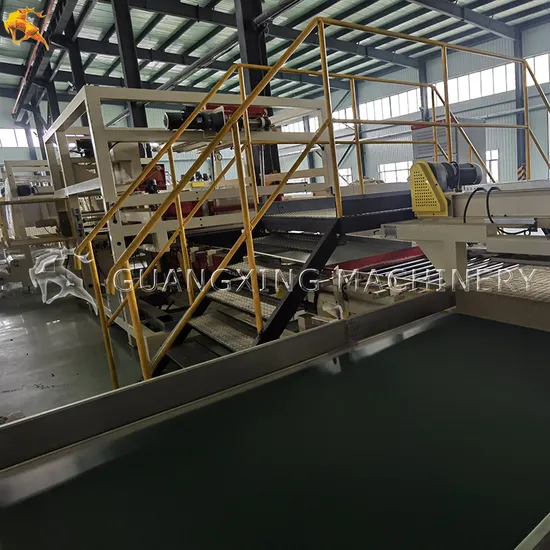

This production line is widely used for phenolic insulation boards in a very wide range of sizes and different densities. It can meet customer's production demand for various soft surface: non-woven fabrics, aluminum foil, glass fiber mat, craft paper,etc. The whole production line mainly includes: soft layer processing system(uncoiler system, heating and foaming platform for soft layers), foaming system, double belt system, double belt heating system, roller system, edge cutting system, cross cut system, electronic control system. This production system is accurate and durable with high productivity and automation. The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the piece has a smooth surface. The double-belt laminating system is of pressure proof, and can achieve a continuously automatic production and limit the foaming material within the mould, ensuring a stable feature in product size. The following conveying and cutting systems can work simultaneously to produce plates of any length. Dust-removing system with cutting machine make the whole production more environmental. Phenolic insulation board is with good flame resistance (1200°C , oxygen index >50), low smoke formation ,stable elevated temperature property , non absorbent , thermal insulation, acoustic insulation ,anti-corrosion, good durability, It is widely used in America , Japan , Europe and other developed countries' construction field for sandwich panel refrigerator, air condition pipe ,and insulation system for roof, external wall, equipments , pipe system, etc.

Product Parameters

ITEM	UNIT	PARAMETER
Effective length of laminating machine	mm	18000--36000
Effective width of laminating machine	mm	1200
Effective height of laminating machine	mm	20--100
Laminating machine temperature control range	°C	≤80
Suitable production rate	m/min	2-10
Suitable production thickness	mm	20--100
Anti-pressure capability of laminating machine (25°C)	Mpa	3
Anti-pressure capability of laminating machine (70°C)	Mpa	2.8
Production Capacity	m³/24h	240
Overall Dimension L*W*H	Mm	(40000--60000)*3000*4000
Installed power	KVA	60
Total weight	Tons	26--72

Product Description

Company Profile

Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China. The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Packaging & Shipping

FAQ

Q: Where is the factory located? A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there. Q: Do you accept on-site inspection to check your machine and your factory? A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing. Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3
month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year.
Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1 Sets
