CNC Medium Speed EDM Molybdenum Wire Cutting Machine SE320 (Economical Pro)

Product Description

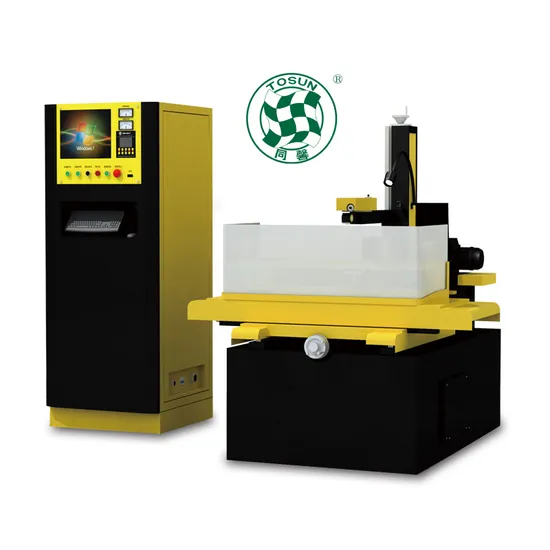

1.Equipment Photo:
2.Equipment Features:
1)Super economical CNC wire cutting machine is a special machine designed for mass and high efficiency processing.
2)The machine has high efficiency,high processing accuracy,good relative smoothness of multiple cutting,simple operations,and high accuracy of machine tool and high consistency of machine tool processing.
3)The machine is suitable for cutting work pieces in large quantities.Its processing effiency is about 5%-10% higher than that of other similar machines.
3.Equipment Specification:

No.	Description	Unit	Specification
	Model		SE320
1	Worktable Size (L×W)	mm	630×450
2	Worktable Travel (X×Y)	mm	350x450
3	Max. Workpiece Height	mm	500
4	Max. Workpiece Weight	kg	300
5	Machine Dimensions (L×W×H)	mm	1650x1180x1720
6	Machine Weight	kg	1100

4.Electrical Parameters:

No.	Description	Unit	Specification
	Model		SE320
1	Max. Cutting Speed	mm²/min	220
2	Wire Electrode Diameter	mm	Φ0.18~Φ0.25
3	Machining Precision (Cutting the octagon in 10mm)	mm	≤0.012/Ф10, Height<100mm
4	Taper/Workpiece Height		±3°/100mm
5	Power Consumption	kw	3
6	Surface roughness	μm	Single cut Ra<2.5 *Multi cut Ra<1.0
7	High pressure water tank		Multi-stage filter system
8	Plastic water jet plate; Bronze spout
9	Control method of Z-axis manual, transport wire tube, cooling system		Controlled by the program and the NC panel
10	Repeating position precision of X, Y-axis	μm	±2
11	Guide rail type of U,V-axis		V-groove rail
12	Speed regulation of transport wire tube		Converter
13	Number of control axes		5
14	Power Supply		AC380V, 50Hz

Note: Our company hold the authority to improve the design&specification of the products without special notification.

FAQ:
Q:Are you a manufacturer?
A:Yes. We are a professional manufacturer, with over 30 years of experience in manufacturing high-precision machining solutions, our machines have passed the ISO 9001 and ISO14001 certification. We are your trusted experts.
Q:How to choose the machine I want?
A:Firstly, please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model.
Secondly, please check if precision and roughness meet your requirements.
Finally, please send your request to us via email or chat box. We will reply you as soon as we receive it. Q:What are your main products?
A:With about 30 years developing, we can supply full range of EDM including:
High speed economy WEDM ( EDM wire cut machine) High precision Low speed Wire cutting Machine SWE.
Multi-cut precise WEDM ( EDM wire cut machine)
Special WEDM, such as Bid WEDM with Separated bed, Multi head WEDM
EDM Die Sinking machine ( ZNC,PNC and CNC)
EDM drilling machine ( ZNC and CNC)
Q:How to place an order?
A:Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.Any requirements will get feedback at first time.
Q:Do you have a specialized department to help us if we need help or technical support?
A:We have detailed instructional videos, even if novices can operate by watching the videos.
We also have a professional after-sales team and strong technical support. We will respond and solve any professional problems at the first time. In case of special problems that cannot be effectively solved remotely, we will also arrange after-sales technicians to arrive at the site for solution.
Q:What trade terms do we usually use?
A:We usually work as FOB Shanghai port. And also accept other trade terms, welcome to receive your port of delivery or other specific requirements.
