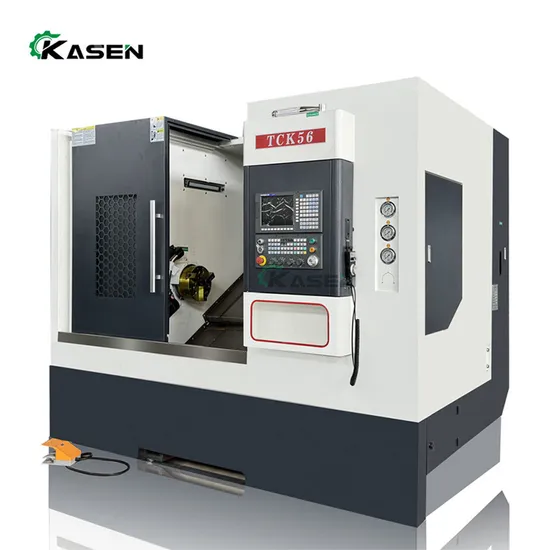

High Quality CNC Lathe Stainless Steel Machine Tck56
Basic Info.
Model NO.
TCK56
Type
Turret Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Maximum Rotation Diameter on The Bed
650mm
Function
Machining Metal
Repeatability (X/Y/Z) (mm)
0.003
Positioning Accuracy (mm)
0.005
Width of Bed (mm)
400mm
Spindle Through
66mm
Spindle Nose
A2-6
Color
Customizable
Number of Tool Holders
12 Workstations
Spindle Speed
10-3000rpm
Voltage
220V/380V
Tailstock Travel (mm)
480
Tip Taper
Mt5
Power Tool Size
Bmt55/Er32
Spindle Maximum Torque (N.M)
72
Transport Package
Plywood Wooden Box
Specification
3400*2060*2100mm
Trademark
Kasen
Origin
China
HS Code
8458110090
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
3400.00cm * 2060.00cm * 2100.00cm
Package Gross Weight
4200.000kg
Product Description
High Rigidity Slant Bed CNC Lathe y axis cnc lathe TCK56Product Description
Features:
The cnc turning center has X/Y/Z/C four linkage axes, and the travel of Y axis is ± 30mm. It can also be processed by C axis linkage.
The cnc turning center integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling,
drilling, tapping and other composite processing of end and side faces.
The cnc turning center is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time.
Product Parameters
| parts | project | TCK56Y |
| Processing range | Maximum rotation diameter on the bed (mm) | Φ650 |
| Maximum cutting diameter (mm) | Φ540 | |
| Maximum cutting length (mm) | Powered turret 540 | |
Itineraryand Feed | X-axis travel (mm) | 280 |
| Y-axis travel (mm) | ±50 | |
| Z-axis travel (mm) | 750 | |
| X-axis movement speed (mm/min) | 24000 | |
| Z-axis movement speed (mm/min) | 24000 | |
| Hand wheel (mm) | 0.001/0.01/0.1 | |
| X, Z feed speed (mm/min) | 0~5000 | |
| X, Z manual feed speed (mm/min) | 0~1260 | |
| Position accuracy | X-axis repeat positioning accuracy (mm) | 0.005 |
| X-axis positioning accuracy (mm) | 0.008 | |
| Z-axis repeat positioning accuracy (mm) | 0.006 | |
| Z-axis positioning accuracy (mm) | 0.008 | |
| Spindle | Spindle speed (rpm) | 10-3000 |
| Spindle maximum torque (N.m) | 72 | |
| Spindle nose | A2-6 | |
| Spindle through hole diameter (mm) | Φ66 | |
| Hollow hydraulic chuck through hole diameter (mm) | Φ52 | |
| chuck | 10" | |
Powered turret 4 wire gauge | Number of tool holders | 12 workstations |
| Tool changing time (s) | 0.25 | |
| Ordinary tool tool installation dimensions (mm) | 25×25 | |
| Y axis travel mm | ±50 | |
| Hydraulic cutterhead loosening/locking time S | 0.12 | |
| Positioning indexing accuracy | ±4" | |
| Repeatability | ±2" | |
| Wire gauge specifications | 35 rollers in the front and 25 rollers in the rear | |
| Tool speed | 6000rpm | |
| Power tool size | BMT55/ER32 | |
| Maximum weight of turret | 300kg | |
| tailstock | Tailstock travel (mm) | 480 |
| tip taper | MT-5# | |
| Main motor | Main motor power (kw) | 11(4500rpm) |
| Main motor torque (N.m) | 72 | |
| X, Z axis Feed motor | X-axis feed motor power (kw) | 2.3 |
| X-axis feed motor torque (N.m) | 15 | |
| Z-axis feed motor power (kw) | 2.3 | |
| Z-axis feed motor torque (N.m) | 15 | |
| Cooling system | Coolant capacity (L) | 200 |
| Motor type (1HP) (kw) | 0.18 | |
| size | Installation (length*width*height) (mm) | 3400/2060/2100 |
| weight | Mechanical weight (kg) | 4200 |
Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
