Dry Powder Mortars Insulation Mortar Double Shaft Paddle Mixer

Product Description

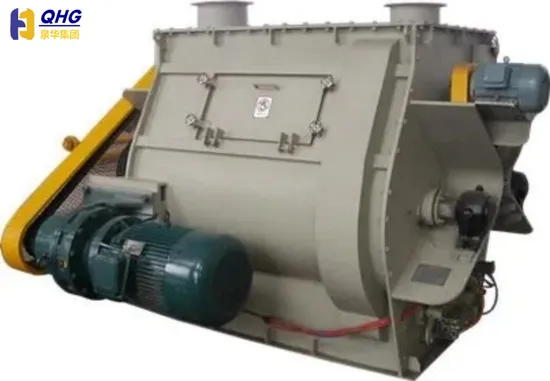

5-50T/H WZ No Gravity Mixer Machine For Mixing Cement/Sand/Dry Mortar Product Description
Agravic dual shaft mixer works in the principle of convection mixing, the twin shaft paddles are installed inside the drum and rotate in the opposite direction each other. Each paddle is designed based on scientific calculation and has reasonable space and angle value. When the materials are thrown to the air flowing layer inside the drum by the rotating force from the paddles, the material will be weightlessinstantaneously and fall into the mutual space,the middle layer will form a fluidized weightless area and vortex, the bottom form a flowing layer, as a result, the materials are taken 3D compound motions to mix the materials evenly.The machine has been widely applied in drying and mixing materials in these industries: chemical, metallurgy, building, coating, resin, pesticide, feed and powder.
Principle diagram of dual axis gravity free mortar mixer
Product Parameters
Our company produces the WZL series mixer, which includes various sizes and models. Their volume sizes range from 0.18 to 12 cubic meters, mixing speeds range from 200 kilograms to 1200 kilograms per session, and power sizes range from 5.5KW-150 kilowatts. We can customize different models of machines according to your different needs.

specification	WZL-1	WZL-2	WZL-3	WZL-4	WZL-5	WZL-6	WZL-7	WZL-8	WZL-9	WZL-10
working capacity(m3)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12
working capacity(kg)	200	300	600	1200	1800	2500	3600	6000	9000	12000
speed(RPM)	60	60	53	43	43	35	35	29	22	18
power(KW)	5.5	7.5	11	22	30	37	44	60	90	150
weight(mm)	650	900	1300	2300	2800	3400	5000	6000	8500	12000
length(mm)	1600	1800	2400	2800	3200	3400	3700	4000	4600	5200
width(mm)	850	1000	1400	1700	1950	2000	2200	2600	3100	3500
height(mm)	950	1100	1800	1950	2000	2000	2300	2600	2800	3000

Our Product Character:
1. different types of discharge method can be chosen, manual, electric and pneumatic,
2. install the flying cutter which can diffuse the fiber rapidly.
3. air-phase equilibrium apparatus make the mixing more uniformly.
4. the assembled paddle structure decrease the maintenance cost significantly.
5. big opening design reduce the dead end, can discharge cleaner and faster.
6. it can do solid-solid(powder-powder) mixing, solid-liquid(powder-liquid) mixing and drying.
7.Mixing speed is fast, normal the powder mixing just need 2~3 minutes.
8.It work under sealed condition, reliable operation, easy maintenance.
Detailed Photos
Our company has over 20 years of advanced management and production experience, using advanced bending and welding processes to strive for perfection in every detail of our products.Customers who purchase our company's products are very satisfied with our products.
Certifications
After more than 20 years of development, our company has accumulated advanced production management experience and has passed quality certifications such as China Machinery Product Quality Association, SGS, ISO9001, etc., ensuring the quality of our products.
Packaging & Shipping
We will use standardized wooden boxes or wrapped film packaging for you, load them into standard containers, and transport the products to you by road, rail, and sea, solving your worries throughout the process.
Company Profile
QUAN HUA Group headquartered is located in Jinan, the city of springs, it is a large-scale enterprise integrating production, scientific research, sales, import and export trade. The company was established in 2003. The factory covers an area of 200,000 square meters and a building area of 120,000 square meters, with 300 employees, It is now constructing an overall framework ,three major industries is mainly of construction machinery, supplemented are installation and construction.
After Sales Service
Our no gravity double shaft mixer machine could use 5-7 years unless the easier wear parts .
a.The machine has a one-year free warranty.If there are problems during normal use, we will provide free repairs.
b. Beyond the warranty period, our company is responsible for lifelong maintenance and guarantees the supply of accessories, only charging a cost fee.
c. Provide long-term technical consulting services.
We QuanHua focus on producing and building dry mix mortar project with turnkey project from the worldwide ,Our products have been export to Qatar Algeria, Uruguay, Ecuador ,Australia ,UAE ,Malaysia etc. countries.Our machine are with steady quality and best service,so we have established good and longer business with our clients.
Every year customers from all over the world visit our factory
Pls don't hesitate to contact us if you have any requirement .Then we will suggest you with the best model of mixer machine according to the usage.For more details,pls don't heistate to contact us asap!
