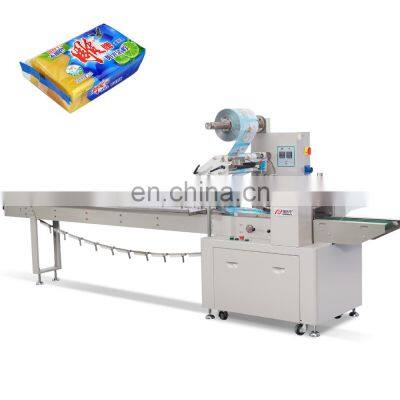

Soap Packaging Paper Wrapping Pillow Packing Machine

Product Description

Product Description
Soap Packaging Paper Wrapping Pillow Packing Machine Soap pillow packing machine Soap automatic packing lineProduct Description Performance characteristics:(1) With menu storage and memory function, the controller can save a variety of parameter configurations, and the recipe can be used when the product or packaging film is changed.(2) The industry-leading electronic cam algorithm, the bag length range is 60mm---infinite length, the bag length is set and cut, one step is in place, saving time and film.(3) Advanced electronic anti-cutting, electronic anti-aircraft bag algorithm. The empty material film stops, saving packaging materials.(4) The horizontal seal is controlled by an independent servo motor, and the longitudinal seal and the feeding tailstock are controlled by a frequency conversion motor. The mechanical structure is simple, stable operation and low noise.(5) Automatically track the feeding speed, and the packaging machine will automatically increase and decrease the speed. High speed, high precision, double knife speed can reach 300 packs/min, error ±1mm.(6) Man-machine interface, convenient and quick parameter setting, automatic tracking of color code, automatic correction of cutting length. Digitally input the sealing and cutting position to make the sealing and cutting position more accurate.(7) Automatic fault diagnosis, the fault display is clear at a glance.(8) Well-known brand servo motor/controller/touch screen, vertical sealing/discharging belt brush.(9) Optional configuration: coding machine, double support paper, automatic film connection, inflation, spray alcohol, lifting panel, stainless steel. Technical parameter:Model ZP-500S (single blade) ZP-500S (double blade)Bag size L80-infinite length W30-150 H5-55mm L60-infinite length W30-150 H5-50mmPackaging film width 65-400mmPackaging materials OPP/CPP, PT/PE, KOP/CPP, ALU-FOILDimensions (L)4000X(W)900X(H)1600mmTotal power 4.2kw 5.6kwMachine weight 630kg Packing Samples
