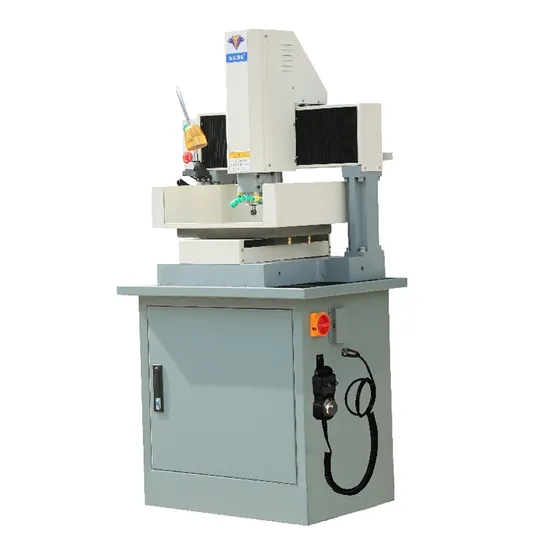

Seal and Badge Carving Machine
| US$5,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DJ320-NC
Color
CNC
Customized
Customized
Design
Any
Eco-Friendly
Yes
Feature
Metal Stone Plastic
Material
Metal
Plating
Any
Shape
Any Shape
Size
Custom Size
Technics
Handmade
Usage
Awards, Company Identification, Fashion Accessories, Gifts, Promotional Events
Wearing Way
Hanging
Transport Package
Wood Crate
Specification
700*530*1400mm
Trademark
KLDJ
Origin
China
HS Code
8461500090
Production Capacity
1200sets/Year
Product Description
Features:The whole machine adopts casting parts; precision linear rectangular guide rail, with preload, good rigidity, high precision; grinding grade precision ball screw with preload, high precision; the engraving control system software is simple to operate, easy to learn, easy to use, easy to master, and the interface adopts International standard G code instructions, compatible with domestic and foreign programming software.
Application:
It is mainly suitable for plane engraving of small workpieces; copper medal and steel seal engraving.
| Project name | Project content |
| X, Y, Z axis motion positioning accuracy | 0.01mm |
| X, Y, Z axis repeat positioning accuracy | 0.01mm |
| Flatness of working platform | ≤0.03mm |
| X, Y verticality | 0.02/300mm |
| X, Y, Z axis working stroke | 300×200×80mm |
| working desk size | 380×270mm |
| Z-direction space height | 170mm |
| Spindle motor output power | 0.8Kw |
| Spindle speed | 0-24000rpm (infinitely variable speed) |
| Working voltage | Single-phase 220V/50Hz±10% |
| Drive system | Stepping |
| Bed weight | 160Kg |
| Machine size | 700×530×1400mm |
| Optional items | Fourth axis/handwheel |
