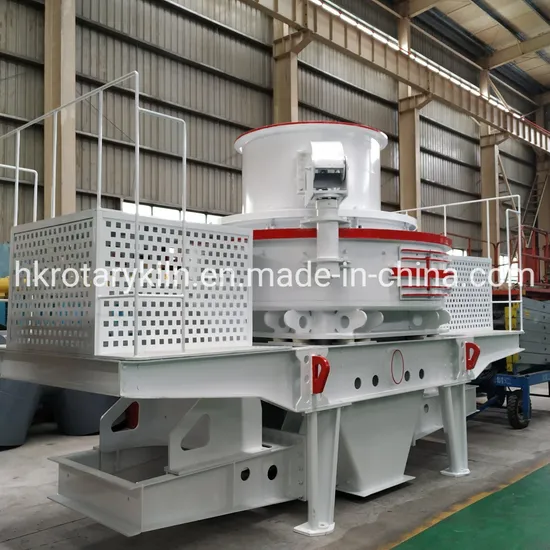

VSI Sand Stone Maker Machine

Product Description

Sand stone maker machine
1. Application Range of VSI Vertical shaft impact crusher
1. VSI Vertical shaft impact crusher can be used in Pebble,rock(the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, attle artificial sand production.
2. The VSI Vertical shaft impact crushercan be used in Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3. The VSI Vertical shaft impact crusher and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,airport runway,municipal engineering and high-rise buildings.
4. The grinding anterior finely process of mining areas. Building materials,mining,metallurgy, chemical industry,cement,abrasive,refractory material, etc.
5. The VSI Vertical shaft impact crusher with high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste.
6. The VSI Vertical shaft impact crusher can be used in the production of glass,quartz sand and other high purity material.
Features and Advantages of VSI Vertical shaft impact crusher
1. The vertical shaft impact crusher VSI crusher with Large handling capacity and High output-50-500t/h, the output of VSI has been stably increased 30% comparing with the traditional equipment under the same motor power.
2. The vertical shaft impact crusher VSI crusher in Low wearing parts cost-Perfect impact angle design of the crushing cavity, less friction against the wearing parts.
The operation cost reduces 40%.
3. The vertical shaft impact crusher VSI crusher with Perfect product shape - Cubic products, suitable proportion and adjustable fineness modulus.
It fits especially man-made sand and stone reshaping.
4. The vertical shaft impact crusher VSI crusher Hydraulic devices are maintained easily-Hydraulic door-opened device make the repair in the crushing cavity easily .Shorten downtime and save effort.
5. The vertical shaft impact crusher Automatic test, safe and reliable-Vibration display and warning device are set.
The machine will be warned to stop working when abnormal phenomenon appears.
6. The vertical shaft impact crusher VSI crusher Thinning oil lubricant and automatic maintenance
The machine will stop automatically when there is no oil and pressure. Water cools the oil and electric motor is heated in winter.
Working Principle of VSI Vertical shaft impact crusher
The vertical shaft impact crusher VSI crusher materials fall into the crusher and are divided into two parts.
One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller.
The two parts materials bump and crush fast during the effect of centrifugal force.
Then the materials run like swirl, bump and rub to each other again and again.
The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.
Main technical parameters of Small Sand Making Machine

Model	Impeller speed (r/min)	Max feed size (mm)	Capacity(t/h)	Powder (kw)	Weight(kg)	Overall dimensions(mm) (L*W*H)
PCL-600	2000-3000	30	12-30	2*30	5.6	2800*1500*2030
PCL-750	1500-2500	35	25-55	2*45	7.3	3300*1800*2440
PCL-900A	1200-2000	40	55-100	2*55	12.1	3750*2120*2660
PCL-900B	1000-1450	40	65-130	2*75	13.6	3750*2300*2090
PCL-1050	1000-1700	45	100-160	2*(90-110)	16.9	4480*2450*2906
PCL-1250	850-1450	45	160-300	2*(132-180)	22	4563*2650*3176
PCL-1350	800-1200	50	200-360	2*(180-220)	26	5340*2940*3650
