High Power Winding Machine for Efficient Electric Thread Production Solutions.

Product Description

Introducing the Electric Winding Machine (DLM-0866), an engineering marvel designed to revolutionize your winding processes. Experience unmatched efficiency and precision that sets a new industry standard.
Presenting the DLM-0866 Coil Winding Machine, a pinnacle of precision engineering. Crafted to deliver extraordinary efficiency and unparalleled performance in every coil winding task.
1. Advanced Array Motor: Discover the dynamic, high-performance capabilities of our cutting-edge array motor, setting new standards in winding technology with superior agility and precision.
2. Automatic Computer Control: Simplify your operations with our advanced computer control system, designed for seamless, intuitive automation and ultimate ease of use.
3. Super Quality: Experience unmatched excellence in design and functionality, ensuring the highest standards of quality and performance in every aspect of operation.

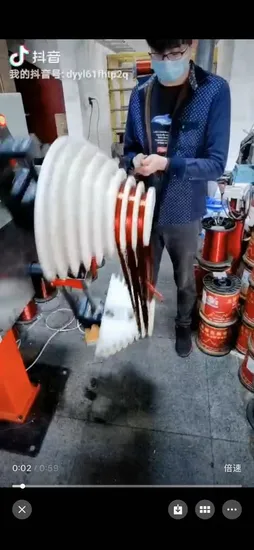

Introducing the DLM-0866 Large Winding Machine, where impressive size meets flawless functionality, redefining industry standards with its outstanding capabilities.
1. This horizontal and automatic winding machine ingeniously integrates serial and parallel coil formers, making it ideal for a wide range of AC and DC motor stator coils and inductance coils, expanding its application scope.
2. Driven by a sophisticated single board computer, this machine expertly handles intricate tasks like zero resetting, traversing, and skipping, ensuring precise alignment and smooth operation.
3. User-Friendly Control Panel: Tailor your settings with precision by adjusting wire diameter, number of turns, traverse, and skipping distances to perfectly align with your operational needs.
Technical Parameter: Explore the superior specifications that define our machine's extraordinary capabilities, consistently delivering top-tier performance and reliability.
Suitable Wire Diameter: Expertly crafted to handle wire diameters from 0.1 to 1.2 mm, ensuring versatility, precision, and ease of use.
Winding Width: Offers an adaptable winding width from 0 to 30 mm, catering to a broad spectrum of applications with unparalleled precision.
Winding Diameter: Accommodates winding diameters between 25 to 180 mm, providing exceptional flexibility and adaptability to meet diverse operational requirements.
Effective Length of Series-mode Axis: Features an extensive range of 500 to 600 mm, enhancing performance, capability, and operational flexibility.
Return Diameter of Former: Supports return diameters ranging from 210 to 280 mm, optimizing efficiency and accuracy for superior operational effectiveness.
Rotation Speed: Propel your operations with a dynamic rotation speed of 3200 R.P.M, significantly boosting productivity and efficiency.
Power Source: Dependable 220V 50Hz power source ensures consistent, reliable, and stable operation, maximizing efficiency.
Pressure of Air Supply: Operates efficiently within an air supply pressure range of 0.5-0.8 MPa, ensuring optimal performance, precision, and efficiency.
Power: Harness the robust power of 750W to execute tasks with unmatched precision, reliability, and efficiency.
Dimension (L x M x H): Compact yet powerful, with dimensions of 1450 x 912 x 1200 mm, designed to maximize space efficiency in various industrial settings.
Weight: Weighing approximately 800 kg, offering a robust yet manageable solution for diverse industrial environments, ensuring stability and durability.
