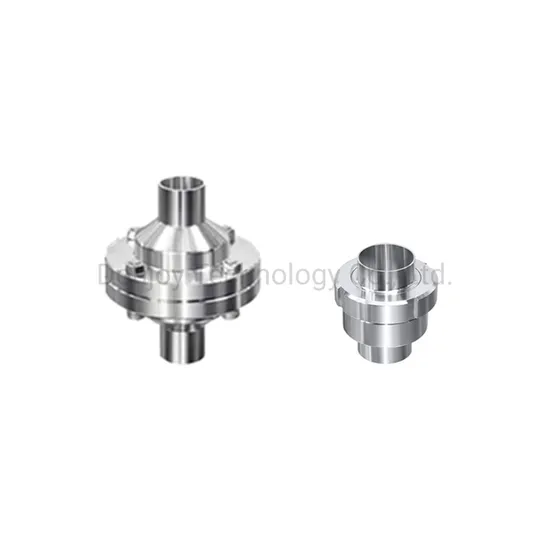

Stainless Steel Check Non-Return Sanitary Valve with Middle Flange Connection
| US$20.00-180.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VZH130A1
Material
Stainless Steel
Connection Form
Welding
Structure
Swing
Pressure
Low Pressure
Flow Direction
Non-Return
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage, Household Usage, Sanitary Industry
Feature
Middle Clamped
Surface
0.8 Micrometer
Middle Connection
Clamp
Gasket
EPDM
Transport Package
Standard Exporting Package
Specification
Dn25-Dn100 or 1"- 4"
Trademark
DONJOY & OEM
Origin
Wenzhou, Zhejiang, China
HS Code
8481300000
Production Capacity
1000PCS/Month
Product Description
Stainless Steel Check Non-Return Sanitary Valve with Middle Flange ConnectionINTRODUCTION:
Donjoy is specialized in manufacturing and exporting valve, pump, fitting for over 20 years, which with good quality and pretty competitive price.
Products are with 3A,CE,FDA cetification and production management is according to ISO9001-2008.
APPLICATION:
Check valve is used for preventing liquid from flowing back and ensure to be flowed into only one direction.
It can be used to prevent the liquid less from returning avoid pipe hammering.
We are a manufacturer specialized in producing kinds of sanitary valves and fittings.
Such as butterfly valves, check valves, ball valves, diaphragam valves, sample valves, stop reversing valves, relief valves,
bends, tees, reducers, unions, ferrules, etc.
The product widely used in the fields of food,beverage, wine, fine chemical and other industries.
SPECIFICATION:
| Connections | Clamped or welded |
| Standard | DIN, SMS, ISO, IDF, RJT |
| Size | DN25-DN100, 1"-4" |
| Material | Parts contact with media 304/316L,other parts 304 |
| Feature 1 | Easy disassemble |
| Feature 2 | Small size construction |
| Spring material | AISI 301 |
| Surface finish | Ra≤0.8μm |
| Max pressure | 10 bar |
| Seal | EPDM according to FDA 177.2600 |
| Working temperature | -10ºC rto 120ºC(EPDM) |
