Paper Machine Roll
A Fourdrinier paper machine generally has seventy or eighty rubber rolls. There are many types of press rolls, which can be divided into Rubber Press Roll, Grooved Press Roll, Jumbo Rubber Press Roll, Jumbo Blind Drill Press Roll, Vacuum Suction Press Roll, Press Suction Couch Roll, Suction Pickup roll, Dryer Felt Roll, Breast Roll, Wire Guide Roll, Drive Wire Roll, Suction Touch Roll, Couch Roll, etc.
Product Parameters

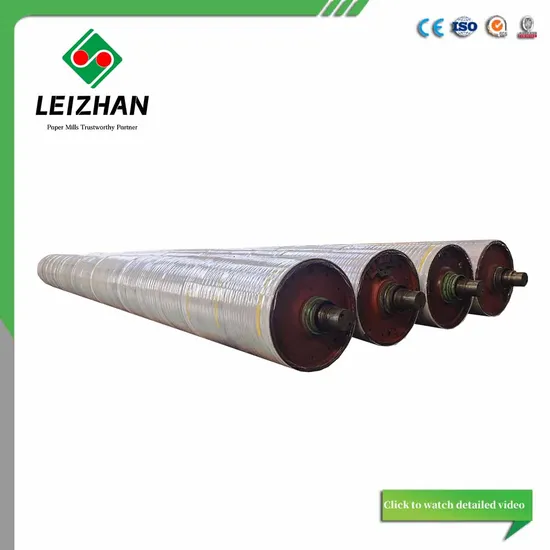

Jumbo rubber Press Roll /Blind drill Jumbo Press Roll
Max Working Speed : 2200m/min Maximum Diameter: 1600mm Maximum Face Length: 120000m Rubber/Grooved Press Roll for Paper Mill
Max Working Speed : 2000m/min Maximum Diameter: 1600mm Maximum Face Length: 14000mm
Vacuum Suction Press Roll
Max Working Speed : 2000m/min Maximum Diameter: 1300mm Maximum Face Length: 10000mm
Polyurethane Coat Press Roll
Max Working Speed: 2000m/min Maximum Diameter: 1300mm Maximum Face Length: 10000mm
Leizhan Production Base
Contact us for more paper machine roller series!!!

Elements of Press roll: Shell, Journal, Bearing House, Bearing,etc
Shell :	Cast Iron or Stainless Steel
Journal:	Cast Steel or nodular Cast Iron
coating:	Rubber or PU and Blind Drill
Bearing:	S K F or F A G, etc
bearing house:	Gray Cast Iron or Nodular Cast Iron or Spheroidal Graphite Cast Iron
Elements Of Vacuum Suction Press Roll : roll body, vacuum box(single or double chamber), bearing house on DS and TS, shower pipe, air tube, regulating valve, pneumatic tire, and seal strip.
