Australia Region/Operator 300Mbps/50Mbps LTE Cat.6 4G Module EG06-AUTL EG06AUTL

Product Description

Product Description

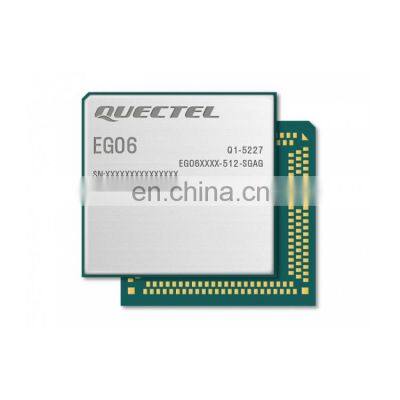

DescriptionKey Features● Supports DFOTA● Supports DTMF● Supports MIMO● Supports VoLTE (optional)● Multi-constellation GNSS receiver availableOverview● The EG06 is a series of LTE-A Cat 6 IoT modules in an LGA form factor measuring 37.0 mm × 39.5 mm × 2.8 mm, which meets the 3GPP Release 11 standard. The EG06 delivers maximum downlink rates of 300Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. The module also supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. The series consists of four variants to meet various geographical demands, which can be compared via the table above.● A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, and Android) allow the module to serve a wide range of IoT applications including industrial routers, home gateways, set top boxes, industrial PDAs, rugged tablet PCs, and digital signage.EG06-EEG06-AEG06-AUTLEG06-EAREGION / OPERATOREMEA/APAC①/BrazilNorth America/MexicoAustraliaEMEAFREQUENCY BANDSLTE-FDDB1/B3/B5/B7/B8/B20/B28/B32②B2/B4/B5/B7/B12/B13/B25/B26/B29②/B30/ B66B3/B7/B28B1/B3/B5/B7/B8/B20/B28/B32②LTE-TDDB38/B40/B41--B38/B40/B412CAB1+B1/B5/B8/B20/B28;B3+B3/B5/B7/B8/B20/B28;B7+B5/B7/B8/B20/B28;B20+B32②;B38+B38;B40+B40;B41+B41B2+B2/B5/B12/B13/B29②;B4+B4/B5/B12/B13/B29②;B7+B5/B7/B12/B26;B25+B5/B12/B25/B26;B3+B3/B7/B28;B7+B7/B28B1+B1/B3/B5/B7/B8/B20/B28;B3+B3/B5/B7/B8/B20/B28;B5+B5;B7+B5/B7/B8/B20/B28;WCDMAB1/B3/B5/B8B2/B4/B5-B1/B3/B5/B8DATA TRANSMISSIONLTE-FDD300Mbps (DL)③/50Mbps (UL)300Mbps (DL)③/50Mbps (UL)300Mbps (DL)③/50Mbps (UL)300Mbps (DL)③/50Mbps (UL)LTE-TDD226Mbps (DL)/28Mbps (UL)226Mbps (DL)/28Mbps (UL)226Mbps (DL)/28Mbps (UL)226Mbps (DL)/28Mbps (UL)DC-HSPA+42 (DL)/5.76 (UL)42 (DL)/5.76 (UL)42 (DL)/5.76 (UL)42 (DL)/5.76 (UL)WCDMA384Kbps (DL)/384Kbps (UL)384Kbps (DL)/384Kbps (UL)384Kbps (DL)/384Kbps (UL)384Kbps (DL)/384Kbps (UL)CERTIFICATIONSCARRIEREurope: Deutsche Telekom/British TelecomAustralia: TelstraNorth America: Verizon/AT&T/U.S. CellularAustralia: Telstra-REGULATORYGlobal: GCFEurope: CESouth Korea: KCAustralia & New Zealand: RCMGlobal: GCFNorth America: FCC/PTCRBCanada: ICGlobal: GCFAustralia & New Zealand: RCMEurope: CEOTHERSRoHS/WHQLRoHS/WHQLRoHS/WHQLRoHS/WHQLEG06-EEG06-AEG06-AUTL③EG06-EAWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
