Developing Machine CTP Plate Processor for Offset Printing

Developing Machine CTP Plate Processor for Offset Printing

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
EcooSetter P-900
Structure
Developing System
Developing Method
Mechanical Spray
Page
Single Faced
Automatic Grade
Semiautomatic
Developering Supplementary
Dynamic Complement
Drying System
Blast Pipe
Developing Machine Debugging
Developer Configuration
Page Size
280-860 mm
Plate Thickness
0.15-0.4mm
Developing Capacity
46L
Drying Temperature
20-65 ºC Can Be Adjusted
Electricity Requirement
220V(208V-240V) Single-Phase 50 Or60Hz
Working Power
4.5kw
Weight
355kg
Transport Package
Standard Exporting Wooden Box
Specification
1420*1460*1280mm
Trademark
EcooGraphix
Origin
China
HS Code
844230
Production Capacity
1000 Sets/Year

Product Description

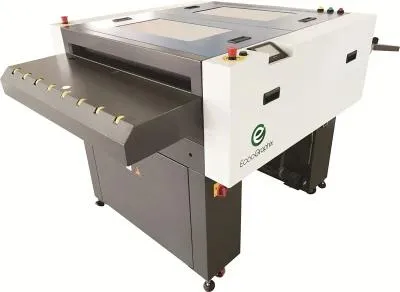

Developing Machine CTP Plate Processor For Offset Printing
Model: EcooSetter P-900

Product Description
1. Application:Regardless of the PS plate or the CTP plate, a processing machine is required for washing the plate after the exposure is completed.
EcooGraphix CTP Processor can be used with offline / online Thermal CTP or UV CTP platesetters. Such as Kodak, Screen, Agfa, Creo, Amsky or Cron CTP machines.
2. Characteristic:-The excellent overall design ensures the development effect, clear outlets, stable product performance and strong reliability.-The development temperature and development time are precisely controlled to meet the washing requirements of various plates and potions, and the application range is wide.-The water-saving effect is remarkable. The precise control of the washing time and the scientific design of the spraying method can save 80% of water.-Significant energy saving in drying, uniform layout temperature (comparable effect can save 30%)-Intelligent replenishment system of developer solution to ensure the development effect and reduce waste.-The scientific design of the power, filtration and pipeline layout of the development cycle can effectively inhibit crystallization.-Low liquid level alarm, drying and over-temperature self-protection function, safe and reliable.-The touch screen man-machine interface is intuitive and easy to understand, making the operation more convenient.-The accessories such as rubber roller and brush are easy to fold in half, and have the function of position memory, easy maintenance.

Specification
Ecoo Processors Series
Model P-900 P-1150 P-1250 P-1500
Page Size 280-860 mm 280-1100 mm 280-1200 mm 290-1500 mm
Plate Thickness 0.15-0.4mm
Processing Speed Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute
Temperature 10 to 45 ºC can be adjusted (automatic temperature control, cooling system)
Developing Capacity 46L 58L 70L 78L
Drying Temperature 20-65 ºC can be adjusted
Electricity Requirement 220 V (208 V - 240 V) single-phase 50-60hz
Working Power 4.5KW 5KW 5.5KW 6.5KW
Weight 355kg 420kg 512kg 600kg
Machine Size 1420 x 1460 x 1280mm

Model: P-900
Page Size:
280-860 mm
Plate Thickness:
0.15-0.4mm
Processing Speed:
Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute
Temperature:
10 to 45 ºC can be adjusted (automatic temperature control, cooling system)
Developing Capacity:
46L
Drying Temperature:
20-65 ºC can be adjusted
Electricity Requirement:
220 V (208 V - 240 V) single-phase 50-60hz
Working Power:
4.5KW
Weight:
355kg
Machine Size:
1420 x 1460 x 1280mm

Producing and Packing Standard Exporting Wooden Box
Our Factory

Installation Worldwide
More details
Our Customer All Around The World
Our Certificate
FAQ 1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. What is your warranty for the Processor?
1 year.
3. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
4. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training.The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
