Sealant Double-Head Automatic Cartridge Filling Machine for Silicone Sealant

Product Description

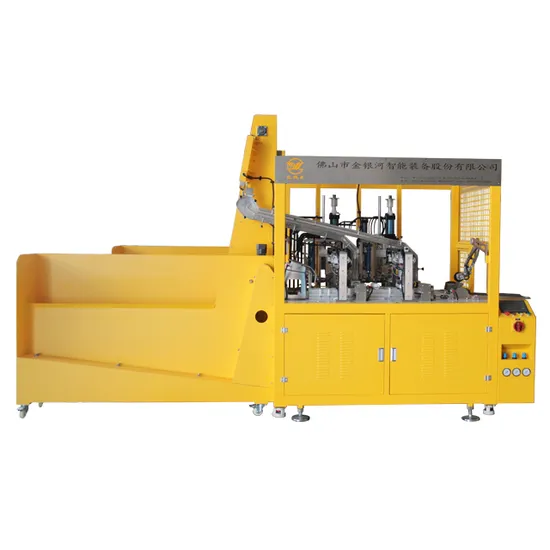

Sealant Double-Head Automatic Cartridge Filling Machine for silicone sealant
SpecificationsIt is used for automatic filling silicone sealant, PU sealant etc. into cartridge, double filling head type. SZD-300 double-head automatic cartridge filling machine is a kind of horizontal filling equipment for silicone sealant, polyurethane sealant and such high viscosity materials in plastic cartridge, paper tube and aluminum tube etc.. The machine is fully automatic, without manual operation. It features accurate metering, fast filling, long-time continuous operation etc., fully meets the production requirements in domestic and overseas factories for large-scale production, reduction of cost and consistent product quality. Compared to ZDG-300 one-head automatic cartridge filling machine, the filling speed is double faster in theory, it forms a complete automatic sealant production line together with the formerly developed SLG series twin-screw sealant automatic production line and JTH series static mixer, and will become a powerful assistant for most sealant manufacturers to upgrade their products.
Main Function
Automatic conveying cartridge and plunger.
Automatic filling and cutting end.
Automatic metering and adjusting filling capacity.
Automatic plugging and exhausting air.
Automatic rotation and printing code (with user's own jet printer)
Automatic counting.
Automatic setting filling parameter.
Free choice between manual operation and automatic operation
Automatic alarm display and machine stop at failure for lack of cartridge, plunger. or materials

Technical Parameter
Filling Speed: 60-70 pcs/min
Capacity Error: +/- 0.5%
Installed Power: 10 kw
Electric Control System: PLC + human-machine interface
Overall size: L5500 x W1430 x H1630 mm
Weight: about 3500 kgs
Compressed Air: 0.7 MPa

Selection of Main Components
- Air cylinder and valve are Japanese SMC, a word-famous brand
- Oil pump and hydraulic valve are Japanese YUKEN, a word-famous brand
- Electric components are Schneider or Siemens, a word-famous brand
- PLC and touch screen are Japanese OMRON brand used for control system (Human-machine interface)
- Stainless steel is used for parts contacting materials.
