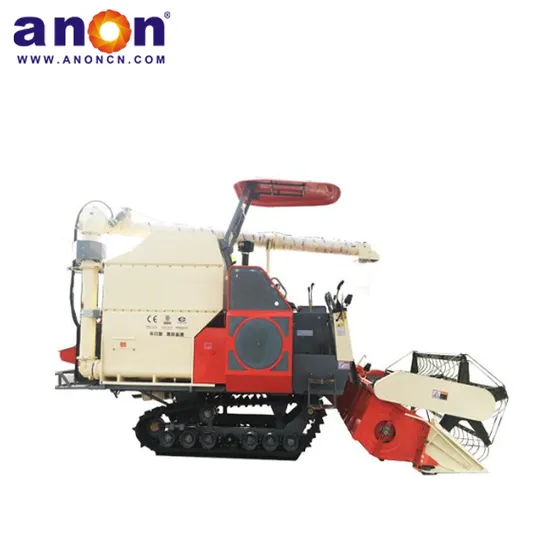

Anon Farm Rice and Wheat Machinery Tracked Rice Combine Harvester
Basic Info.
Model NO.
AN4LZ-6.0Z
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year After Receive
Walking Type
Self-Propelled Rubber Crawler
Weight
3420kg
Engine(Kw/HP)
73/100
Engine Type
Water-Cooled, 4-Cylinder, Dl-Injection
Feeding Capacity
5.0kg/S
Harvesting Capacity
0.27-0.54 Hm2/H
Grain Tank Capacity
1500L
Cutting Width
2000/2200mm
Specification
4300*1980*2675mm
Trademark
ANON
Origin
China
HS Code
8433599090
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
430.00cm * 198.00cm * 260.00cm
Package Gross Weight
3420.000kg
Product Description
Anon Farm Rice and Wheat Machinery Tracked Rice Combine HarvesterAnon Farm Rice and Wheat Machinery Tracked Rice Combine Harvester
| Size | 5180*2585*2720mm | |
| Weight | 3420kg | |
| Feeding capacity | 5kg/s | |
| Harvesting capacity | 0.27-0.54 hm2/h | |
| Engine | Model | 4C6-100 M22, 4D35ZT32/1004 |
| Rated power(kw/hp) | 73/100 | |
| Type | Water-cooled, 4-cylinder, Dl-injection, Vertival diesel | |
| Rated rotation speed | 2400r/min | |
| Fuel Tank capacity(L) | 105/140 | |
| Driving system | Rubber track | 90*54*500mm |
| Minumum ground clearance | 400mm | |
| Type of gearbox | Hydraulic type+HST(3F,3R) | |
| Theoretical operating speed | 2-4km/h | |
| Type of brake | By foot | |
| Steering | Clutch and brake | |
| Cutting header | Pick up reel | Eccentric tooth(off-centre), diameter: 944mm, Nos:5 |
| Height adjustment | Hydaulics | |
| Cutting bar lenght | 2000/2200mm | |
| Type of header auger | Telescopic screw conveying | |
| Type of blade | V Type/Left and right | |
| Rape seed extension | Opthional | |
| Threshing&Separating& Cleaning system | Threshing system | Spiked tooth axial flow |
| Threshing cylinder size diameter | 626*2000mm | |
| Rethresher | Blade rotation | |
| Vibrating sieve | Adjustable sieve/Meshing sieve/Hole seive(optional) | |
| Fan | Type: swirl, Diameter:405mm, Nos:4 | |
| Grain storing | Option 1 | Grain tank with unloading auger, Capacity: 1500L |
| Option 2 | Grain tank with 360° unloading auger | |
| Option 3 | Manual operation | |
Anon Farm Rice and Wheat Machinery Tracked Rice Combine Harvester
Advantage:
A. It has the biggest mini ground clearance: 400mm
B. Equipments: 4 Cylinder engine / Power 100HP / 42 HST / 500*90*54mm Rubber tracks
C. Optional: Down-Cutter, / Rear Chopper / Corn / Reap seeds device
D: Supper performance in mud field
