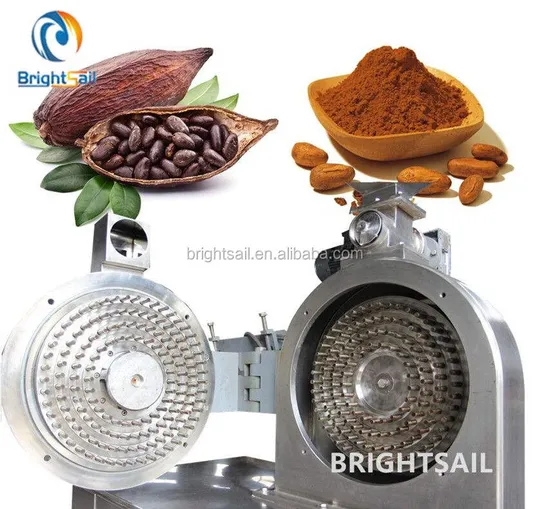

Cocoa Bean Grinder Milling Machine/Turmeric Powder Grinder

Product Description

Product Description
cocoa bean grinder milling machine turmeric powder grinder Product Application Specialized in milling for various fruitwalnutscoffee beanscocoa beans,peanutsrice and other food and chemical raw material.

Introduction:
1Agricultural products of oil and fat and special milling machine of chemical raw material import foreign technology, developing constantly through many years of practice.

2This product conforms to the standard of food hygiene and has easy operation and low noise, it is useful for enterprises to process various food and chemical materials.

3 This series has two types of bidirectional wheel grinding and unidirectional wheel grinding and their model sizes are 400/300.

Principle:
1Bidirectional pair wheels adopt the way of reverse rotation of front and back grinding wheels, thus this way improves the crushing effect. Double discs install the needle cylinders whose diameters are different, every part arrays needles and bars through the technology of three dimensional simulation, designing the layout rationally and thus it can control the materials to achieve the effective split effect in the gap of needle bar efficaciously.

2Needles and bars can adopt the shape of hexagonalsquarewolf teeth and so on according to crushing materials. The shape of wolf teeth is all called corn cob rollermill, and this machine has the special effect for the engineering plastic with high melting point to flour at room temperature. Needle and bar mill adopt the way of quantitative feeding of screw, controlling the even motion of materials in the inward of millstone.

3The ways of discharge are output in the natural state and discharge of negative pressure method. This machine does not have mesh screen in the chamber of grinding wheel, and it adjusts the fineness of crocus through the wire-speed of mill wheel, it can also classify materials through external grading method.

Tenical data of BSZ cocoa powder/coffee powder grinder part.

Model	BSZ-350	BSZ-450	BSZ-550
Capacity (kg/h)	60-200	150-500	230-700
Feed size (mm)	< 15	< 15	< 15
Output size (mesh)	40~325	40~325	40~325
cavity disc crush motor(KW)	11	18.5	22
door disc crush motor (KW)	15	22	30
feed screw motor (KW)	0.37	0.55	0.75
Speed rpm	12000	9600	8400

Main Features 1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) No need screen in grind chamber, change powder size by changing speed.
4) Can make very fine powder
Our Service
Pre-Sales Service
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	It depends
Weight	depends
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	20 ft container; 40 ft container
Weight	depends
Packaging Details	If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
