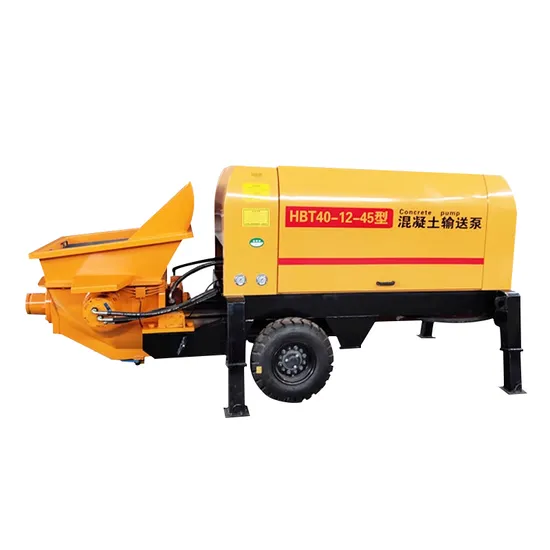

Hydraulic System Concrete Diesel Trailer Mounted Pump
Basic Info.
Model NO.
YG-30
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
35m²/h
Feeding Height
120m
Condition
New
Color
Orange
Item
Concrete Mixer Pump Machine
Horizontal Conveying Distance
100m
Vertical Conveying Height
50-60m
Maximum Aggregate Diameter
30mm
Delivery Volume
30-35m3/H
Transport Package
Wooden Cases
Specification
2100*1000*1200 mm
Origin
China
HS Code
8413400000
Production Capacity
50000sets/Year
Product Description
Factory price mobile stationary diesel concrete pumping machine Product DescriptionNewly developed concrete pump can deliery concrete, mortar, cement, fireproof material, etc. It is suitable for fine stone concrete transportation to higher construction floor column pouring. It is the smallest concrete pump in China, mainly for some special construction conditions or narrow sites, which is inconvenience in work or difficult to complete the construction schedule.
| Model | YG-20 | YG-30 | YG-40 | YG-50 |
| Engine | Diesel, 4102 | Diesel, 4105 | Diesel, 4108 | Diesel, 6102 |
| Power | 22kw | 37kw | 45kw | 55kw |
| Max. aggregate size | 20mm | 30mm | 40mm | 50mm |
| Conveying Capacity | 10-15m³/h | 15-30m³/h | 30-40m³/h | 40-50m³/h |
| Horizontal conveying distance | 100-120m | 150-200m | 200-350m | 200-300m |
| Vertical conveying distance | 50-60m | 80-100m | 120-140m | 120-140m |
| Pipe diameter | 80-100mm | 80-100-125mm | 80-100-125mm | 100-125-150mm |
| Outlet diameter | 100mm | 125mm | 125-150mm | 150mm |
| Material tank diameter | 120mm | 140-160mm | 160-180mm | 200mm |
| Pipe | steel pipe * 40m soft pipe *10m | steel pipe * 40m soft pipe *10m | steel pipe * 40m soft pipe *10m | steel pipe * 40m soft pipe *10m |
| Dimension | 2800x1100x1300mm | 4000*1400*1500mm | 4000*1500*1550mm | 4200*1800*1700mm |
| Weight | 900kg | 1800kg | 2500kg | 3000kg |
