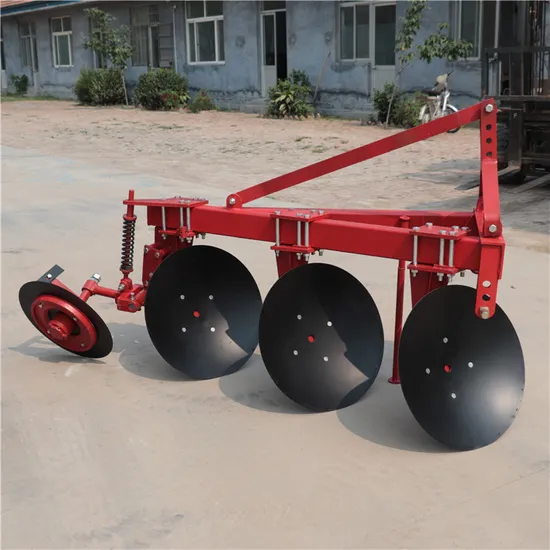

Agriculture Frame 3-Point Mounted Heavy Duty Tube Disk Plough for Cultivator

Product Description

Product Description
1LYX serious heavy-duty tube disc plough is completely mounted with tractor. In the operation process, the disc is rotating to turn the soil. Particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and break brickbat, etc. In the field, it is good at cutting grasses and straw, free from stopped by the grasses, soil or stones. etc. It is efficient in the work. It is of good quality during operation. It is easy to adjust and strong and durable.
Product Parameters

Type	1LYX-230	1LYX-330	1LYX-430	1LYX-530	1LYX-630
Working width (mm)	600	900	1200	1500	1800
Working depth (mm)	250-300	250-300	250-300	250-300	250-300
No. of disc (PCS)	2	3	4	5	6
Dia of disc (mm)	660	660	660	660/710	660/710
Weight (kg)	320	400	490	650	750
Matched power(HP)	40-50	60-80	80-100	100-120	120-160

Detailed Photos
