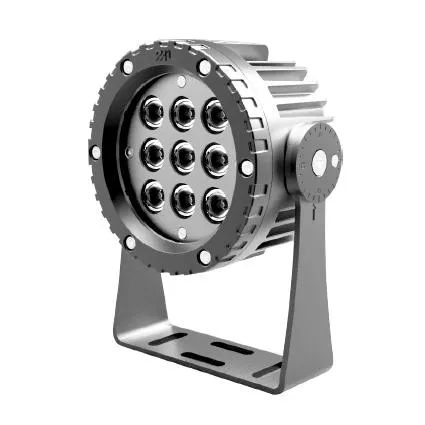

Factory Manufacturing Outdoor Landscape Garden Woods Park Roadside Stadium Die-Cast Aluminum LED Flood Lights

Product Description

LED flood light outdoor lighting 6w 9W 12W 18W is used for landscape lighting of garden buildings
Dimensional drawings
Mounting hole bitmap
PRODUCT FEATURE:
.Made of aluminum with modern design
.Patent structure design, waterproof treatment
.Low thermal resistance paths design for heat dissipation
.Professional optical design with high light-extraction efficiency (LEE) and uniformity of illumination
.Low heating power supply design with high energy efficiency and high power factor (PF) value
.Outdoor lightening protection
FUNCTION PARAMETER:
Color: RGB/RGBW/Day white/ Warm white/ Yellow
Light sources: High Power 1W/3W
Beam angle: 8°,15°,30°,45°,60°,more available options
Work temperature: -20ºC~50ºC
Storage temperature: -40ºC~70ºC
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP rating: IP67
Life: 50,000h

Model No.	Shell	Light source	Power	Input voltage	Output current	CT
JML-T125C-6M	Die-cast aluminum	6×1W	6W	AC220V	340mA	Monochrome
JML-T125C-9M	Die-cast aluminum	9×1W	9W	AC220V	340mA	Monochrome
JML-T125C-12M	Die-cast aluminum	6×2W	12W	AC220V	340mA	Monochrome
JML-T125C-18M	Die-cast aluminum	9×2W	18W	AC220V	340mA	Monochrome
JML-T125C-6R	Die-cast aluminum	6×1W	6W	DC24V	3×340mA	RGB
JML-T125C-9R	Die-cast aluminum	9×1W	9W	DC24V	3×340mA	RGB
JML-T125C-12R	Die-cast aluminum	6×2W	12W	DC24V	3×340mA	RGB
JML-T125C-18R	Die-cast aluminum	9×2W	18W	DC24V	3×340mA	RGB

Case show
About us
Q1. Can I have a sample order for led light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for led light order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for led light? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on led light product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products? A: Yes, we offer 2-5 years warranty to our products.
