Productive Door Skin Laminating Hot Press Machinery

Product Description

Product Description
The door skin laminating hot press is a specialized equipment used to adhere decorative materials
(such as wood veneer, PVC film, and melamine paper) to the surface of door panels.
It applies heat and pressure to securely bond the decorative material to the substrate
(such as MDF, plywood, or solid wood) of the door panel,
giving the surface of the door panel a beautiful decorative effect and higher durability.
USAGE 1. Decorative panel production
2. Furniture manufacturing
3. Processing of interior decoration materials
4. Enhancing the protective and durability of the panel
5. Processing of composite materials
Working Principle
The heating system of the hot press is activated to provide even high temperature, ensuring that the heating plate reaches the pre-set temperature. The temperature setting is adjusted according to the characteristics of the veneer material to ensure a good bonding effect.
The hydraulic system is activated to place the door panel and decorative materials between the heated pressing plate, applying a strong pressure to make the decorative material firmly adhere to the substrate. The size and duration of the pressure are set according to the material andprocess requirements to ensure a firm bond without air bubbles or wrinkles.
Under the combined action of high temperature and high pressure, the adhesive or the backing adhesive of the decorative material is activated to produce a strong bonding force, making the decorative material firmly bonded to the panel.
After the heating and pressing are completed, the equipment will undergo a cooling process to gradually cool and stabilize the bonding area, ensuring that the decorative material is firmly attached to the substrate and is not easy to fall off or deform.
Product Parameters

1	Model	BMBRY-21-4*8-160T-3L
2	Hot press plates	2500 * 1300 * 42 mm, 4 sheets
3	Hydraulic pistons	diameter φ 140 mm, stroke 390 mm, 4 pieces
4	Nominal pressure	160 Tons
5	Opening size	130 mm
7	Electrical control style	Semi-automatical
8	Hydraulic system limit pressure	25 Mpa
9	Main pump	100:100 double vane pump, 7.5 KW motor
10	Pressurized pump	10 ml / rev, 5.5 KW motor
11	No-load closing time	13 Seconds
12	Heating medium	heat transfer oil or steam
13	Main frame steel thickness	20 mm, 12 mm
14	Frame style	welding frame
15	Cross beams size	450 mm, 450 mm, 300 mm
16	Machine size	2960 * 1300 * 1800 mm
17	Total weight	8000 KG

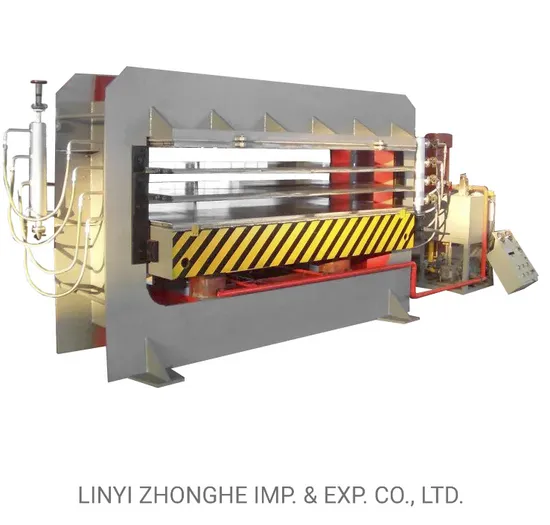

Machine Photos for Reference

Machine Features
1. Uniform heating:
It uses advanced heating systems to ensure even heating of the door panel surface, avoiding bubbles, warping, or poor adhesion.
2. Stable pressure:
The hydraulic system provides stable and powerful pressure, allowing decorative materials to be firmly adhered to the door panel surface, ensuring consistent product quality without any adhesion issues.
3. Adjustable temperature and pressure:
Depending on the type of decorative material and the required process, the machine can flexibly adjust temperature and
pressure to achieve the best adhesion effect and adapt to various laminating processes.
4. High-efficiency production:
The equipment has a multi-layer laminating function, allowing multiple door panels to be laminated at once,
improving production efficiency and saving time, suitable for mass production requirements.
5. Versatile application:
It can be used for various decorative materials, including wood veneer, PVC film, and melamine paper,
to meet the production needs of different styles and functions of door panels.
6. Automated control
7. Energy-saving and environmentally friendly
8. Durable and low-maintenance
