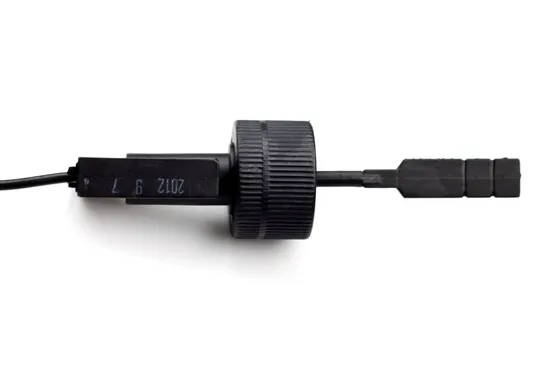

Micro Plastic Magnetic Paddle Water Flow Switch

Product Description

Micro Plastic Magnetic Paddle Water Flow Switch
Advantages
Operating principleAs liquid passes through the flow sensor body, the magnetic rotor spins at a rate proportional to flow. This Causes a series of magnetic fields (the rotor vanes) to excite the Hall Effect sensor, producing a series of voltage pulses
Specifications
Electronic water flow sensor FLW01001
1.Low cost
2.Long life
3.Simple installation
4.Wide applications
Introduction
Flow switch consists of magnetic core, rotating impeller, external casing and reed switch. Flow through the sensor activates the magnetic core to trigger switch action, with signal output.

Installation location	Vertical Installation
Max Switch Voltage	300V
Insulation Resistance	<100MΩ
Contact From	No
Max Switch Current	0.5A
Max Contact Resistance	200MΩ
Min Insulation Resistance	100000000000
Electrical Life	100000000
body material	PA6+GF15 Black

Features
* Imported components of the magnetic switch
* Simple working principle
* Highly reliable
* Easy to install
* No standby power requirements
* Cheap costs
Applications
It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems. Package Standard plastic bags and cartons, also we can provide customized design for all kinds package.
